CAD Drawings

CAD (Computer Aided Drawing) renderings are helpful for reviewing fence and gate profiles along with specs. They are also useful for presenting to homeowners associations (HOAs), historical societies or your local building department if you need to obtain approval prior to purchase and installation. All available heights and widths are consolidated within each style.

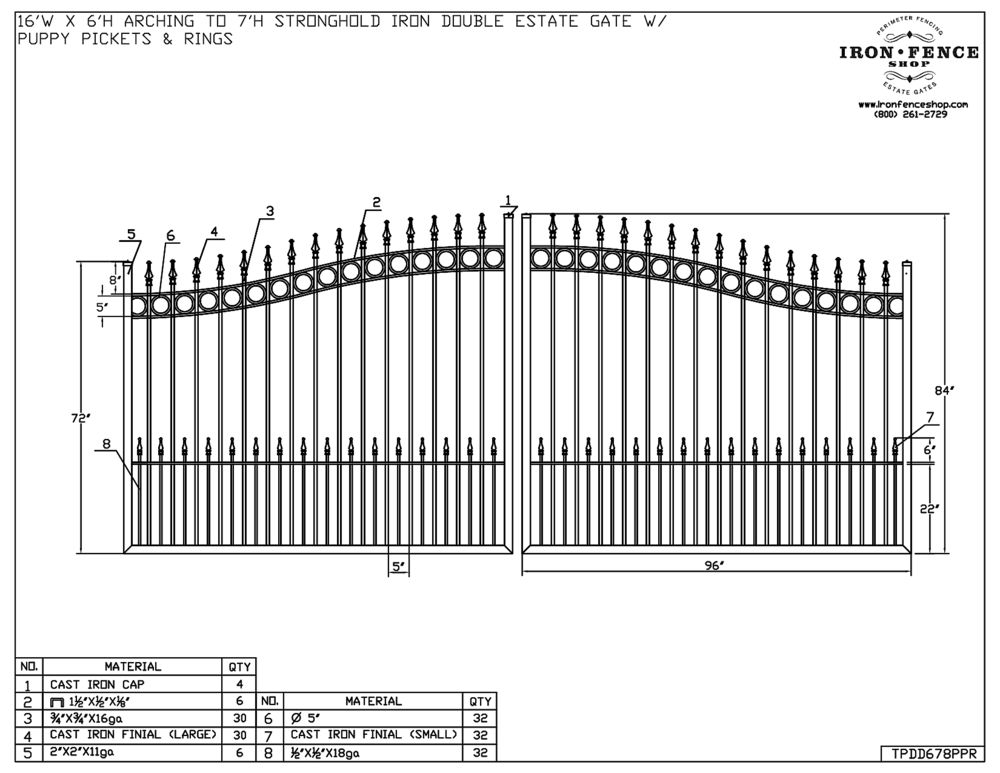

TPDD678PPR

6' Arching to 7' H x 16'W - Iron - Signature Double Piece Estate Gate - Style #16: Rings Puppy Picket Download

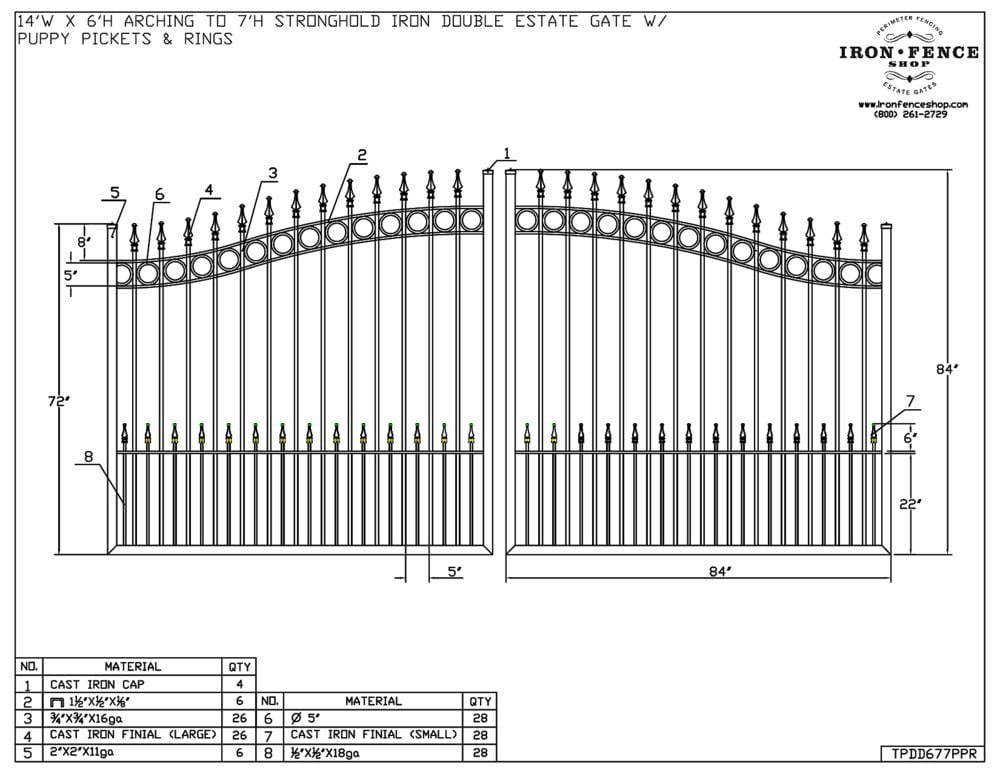

TPDD677PPR

6' Arching to 7' H x 14'W - Iron - Signature Double Piece Estate Gate - Style #16: Rings Puppy Picket Download

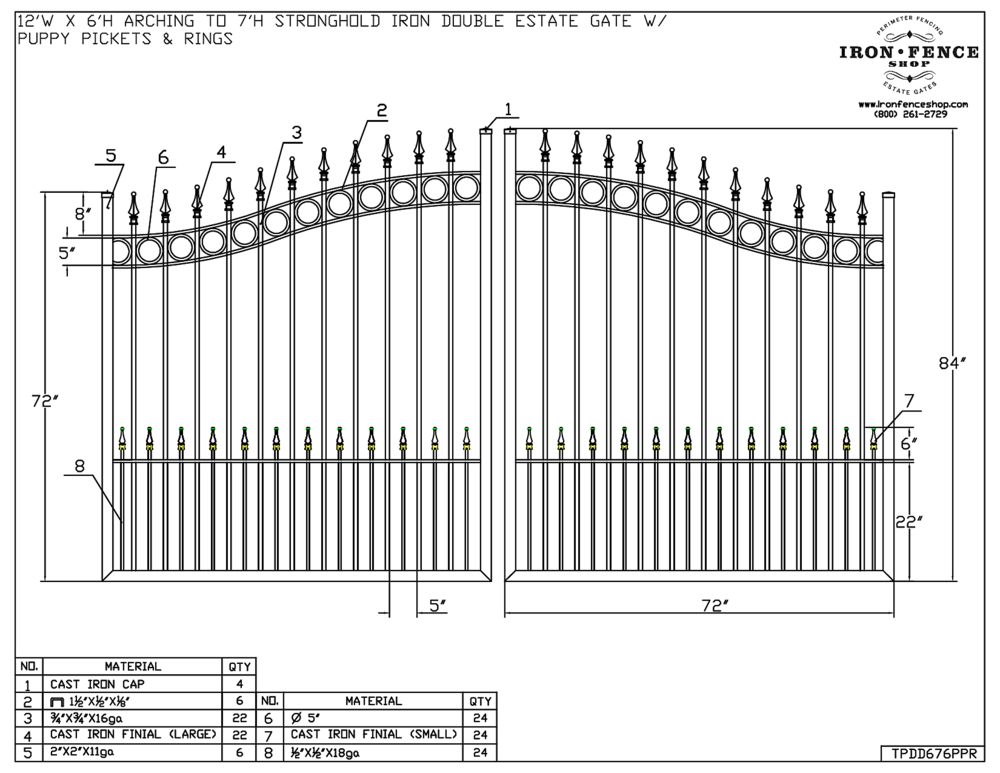

TPDD676PPR

6' Arching to 7' H x 12'W - Iron - Signature Double Piece Estate Gate - Style #16: Rings Puppy Picket Download
