CAD Drawings

CAD (Computer Aided Drawing) renderings are helpful for reviewing fence and gate profiles along with specs. They are also useful for presenting to homeowners associations (HOAs), historical societies or your local building department if you need to obtain approval prior to purchase and installation. All available heights and widths are consolidated within each style.

TPDD0678Q

6' Arching to 7' H x 16'W - Stronghold Iron - Signature Grade Double Piece Estate Gate - Style #18: Regal Download

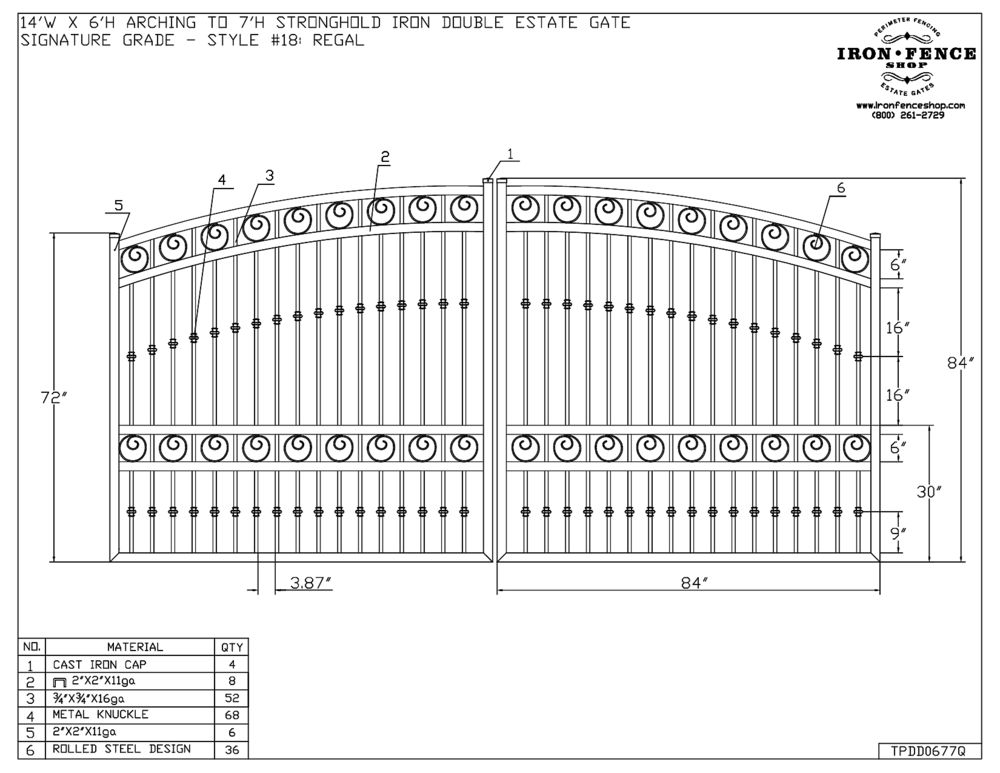

TPDD0677Q

6' Arching to 7' H x 14'W - Stronghold Iron - Signature Grade Double Piece Estate Gate - Style #18: Regal Download

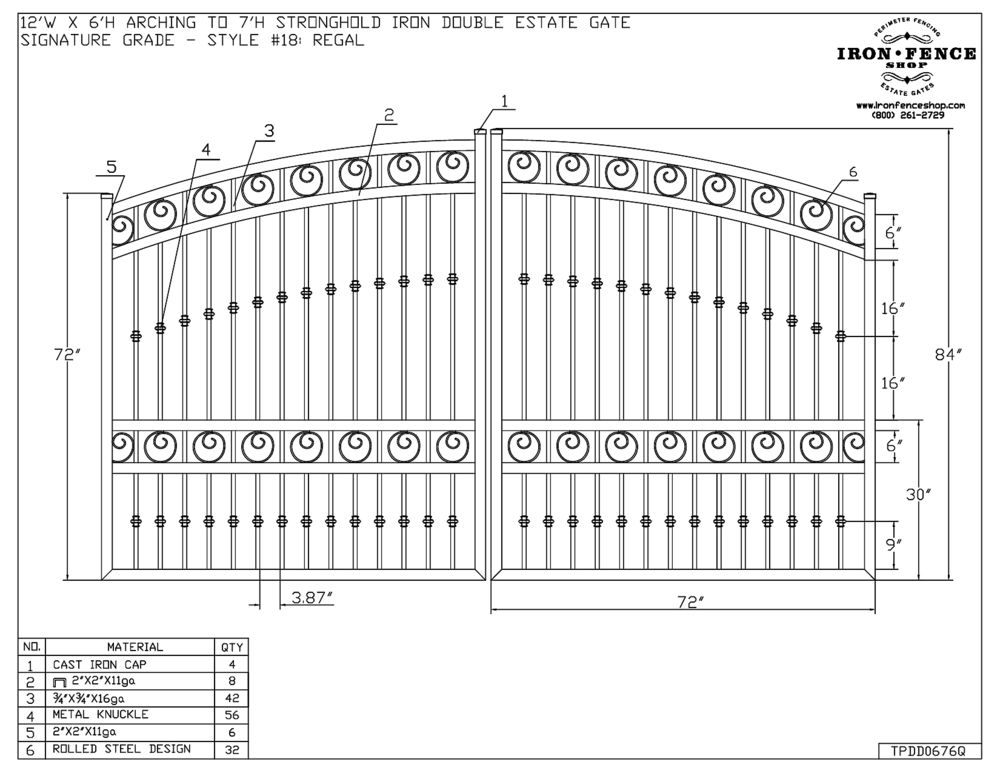

TPDD0676Q

6' Arching to 7' H x 12'W - Stronghold Iron - Signature Grade Double Piece Estate Gate - Style #18: Regal Download
