CAD Drawings

CAD (Computer Aided Drawing) renderings are helpful for reviewing fence and gate profiles along with specs. They are also useful for presenting to homeowners associations (HOAs), historical societies or your local building department if you need to obtain approval prior to purchase and installation. All available heights and widths are consolidated within each style.

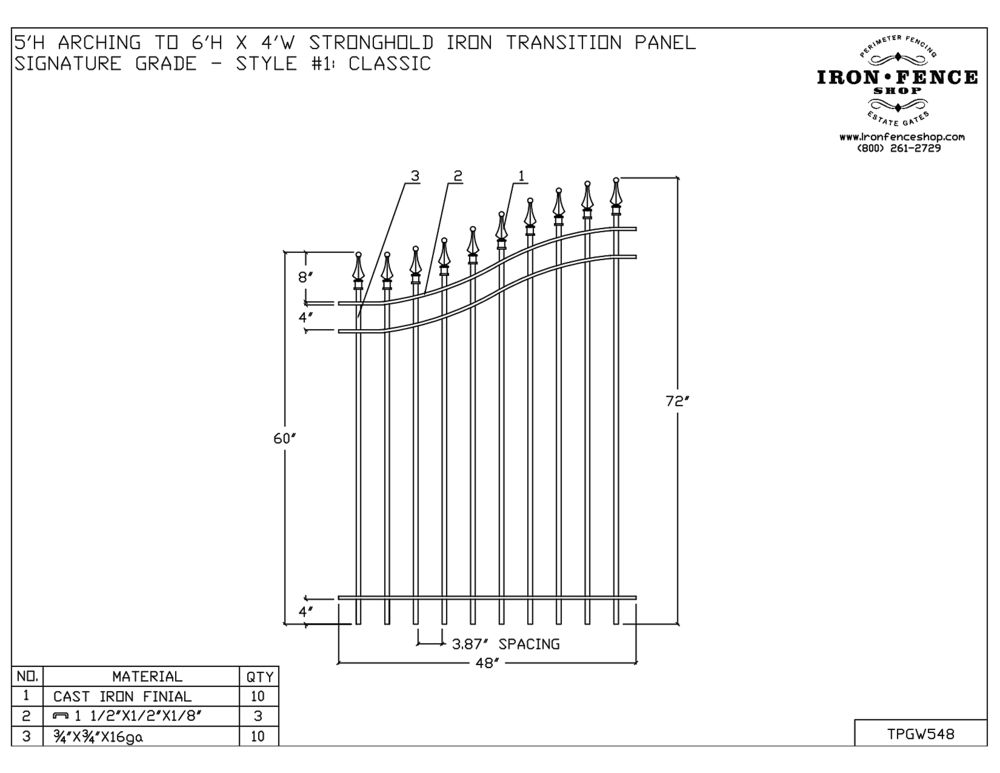

TPGW548

6'H Arching Down to 5'H x 4'W Transition Fence Panel Download

TPDD6710

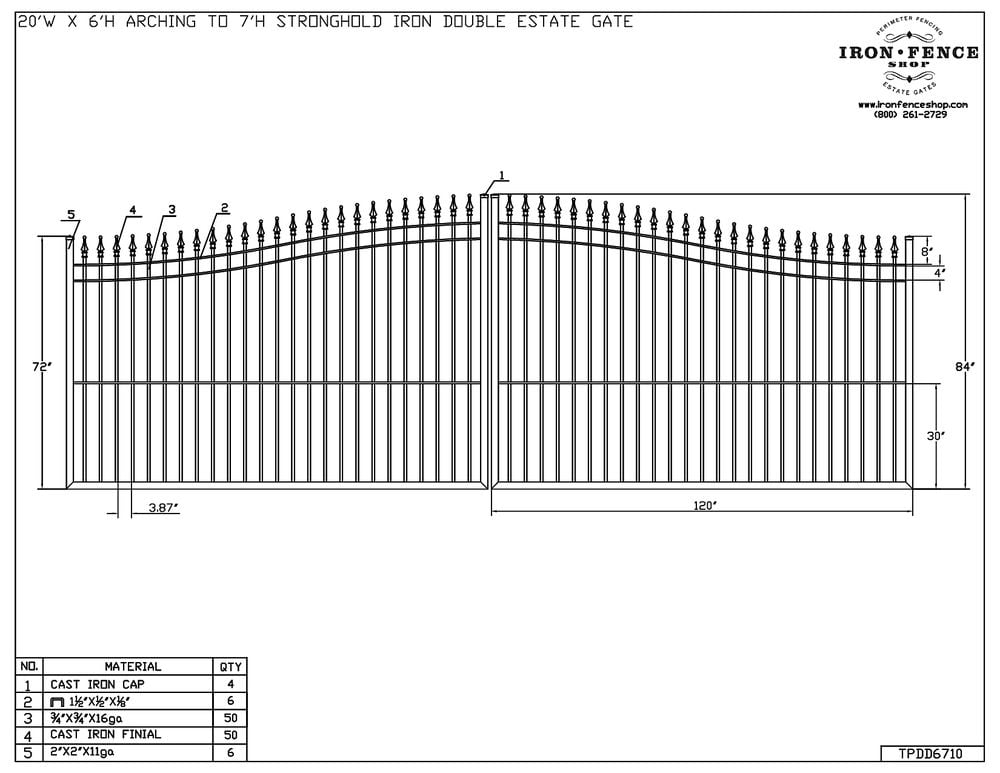

6' Arching to 7' H x 20'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

TPDD0679

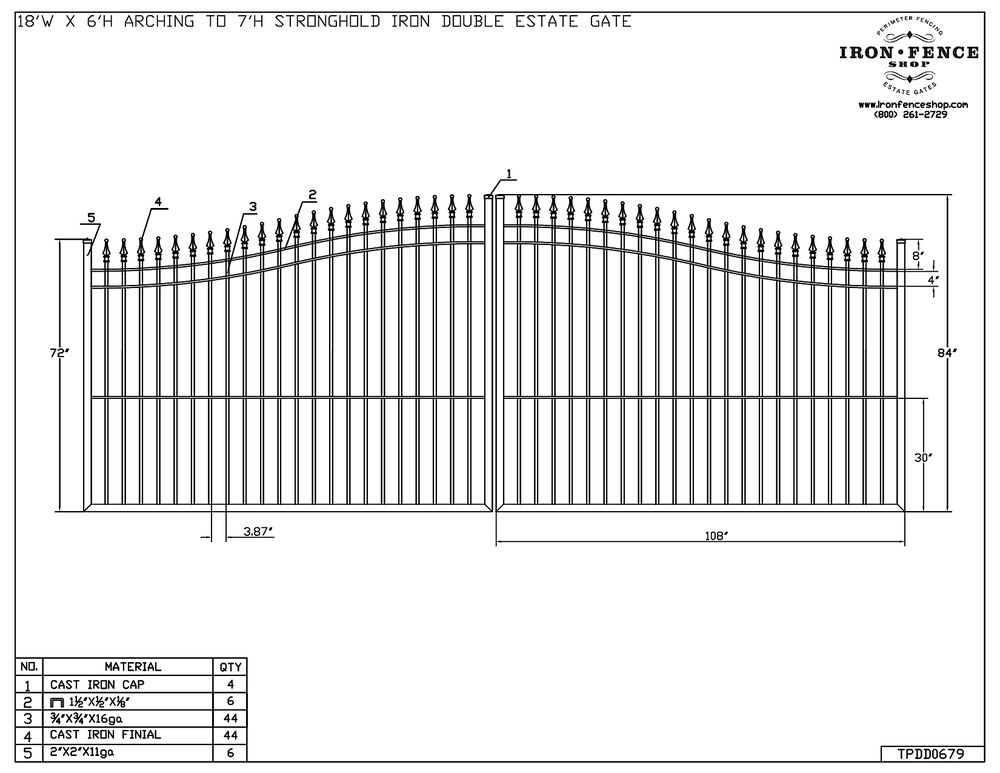

6' Arching to 7' H x 18'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

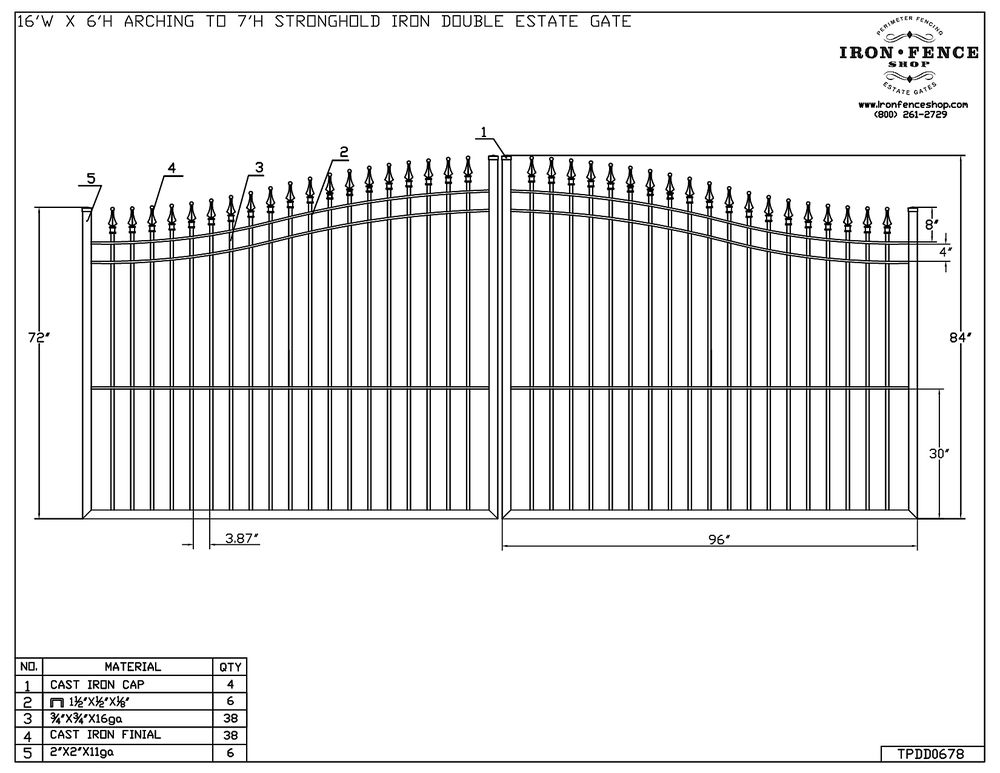

TPDD0678

6' Arching to 7' H x 16'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

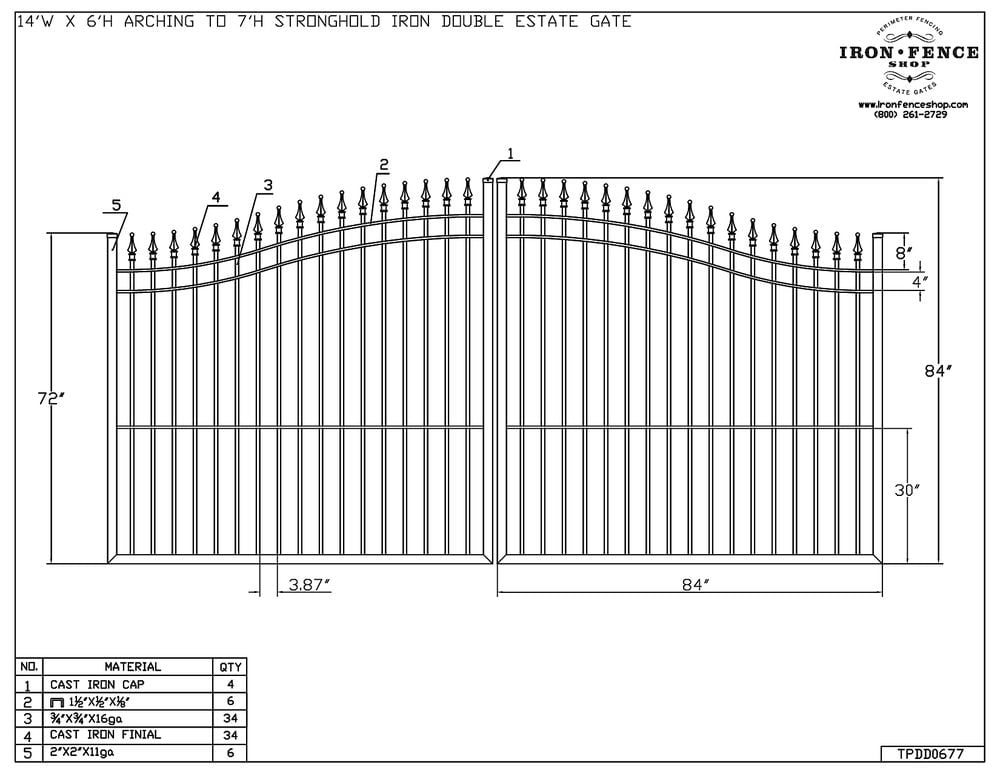

TPDD0677

6' Arching to 7' H x 14'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

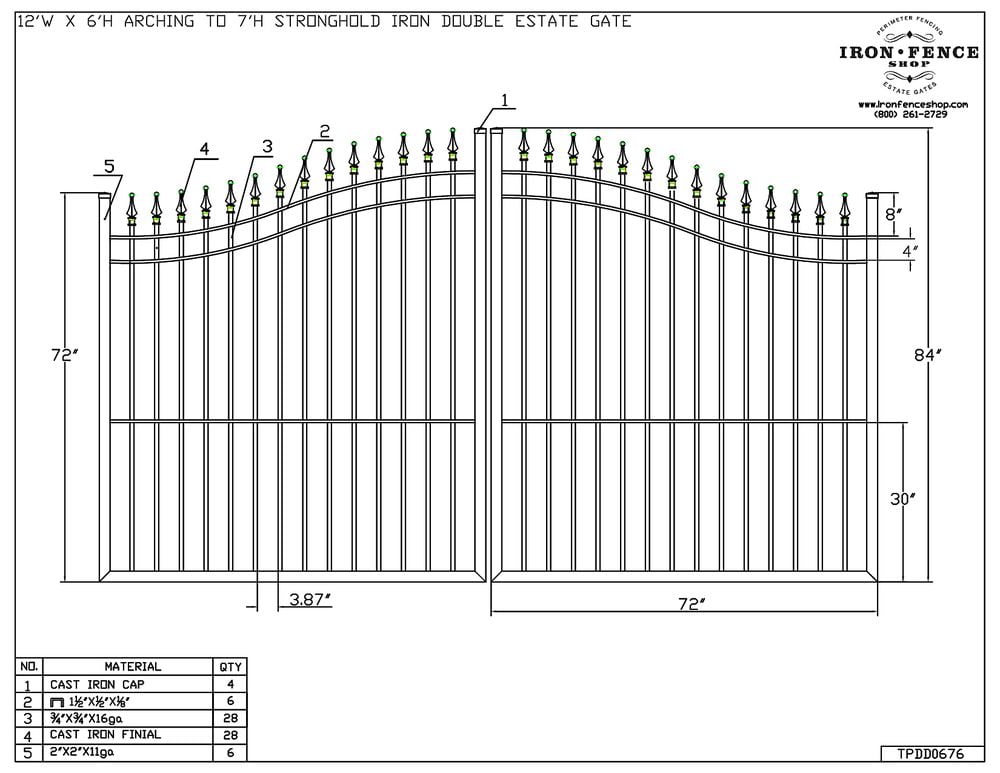

TPDD0676

6' Arching to 7' H x 12'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

TPDD0675

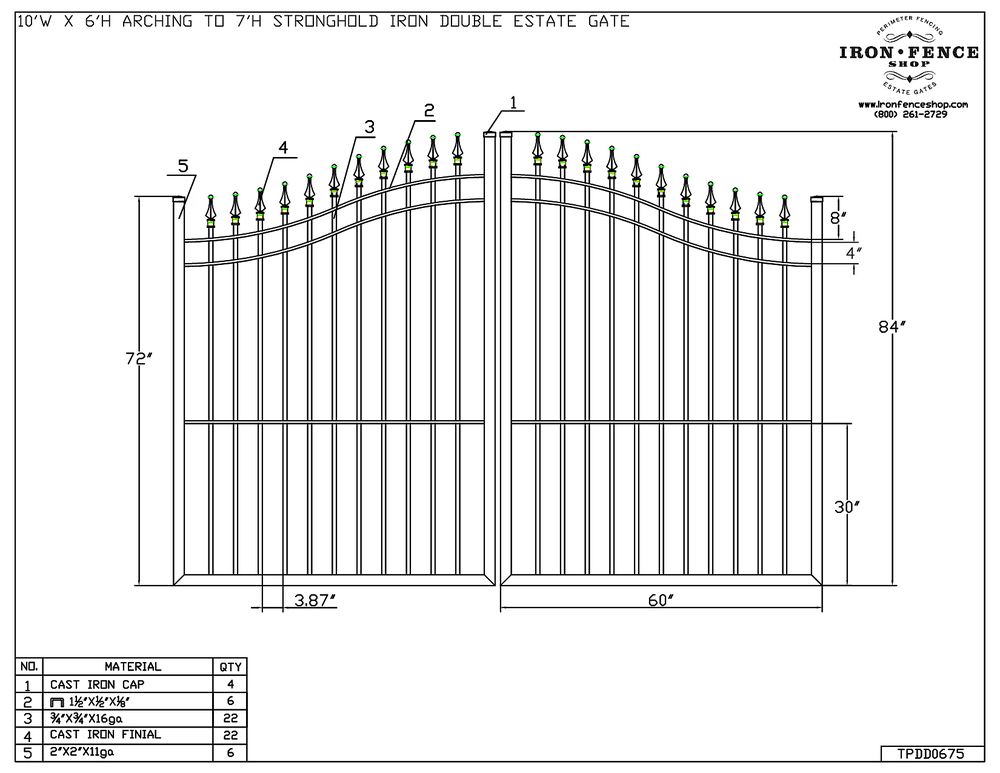

6' Arching to 7' H x 10'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

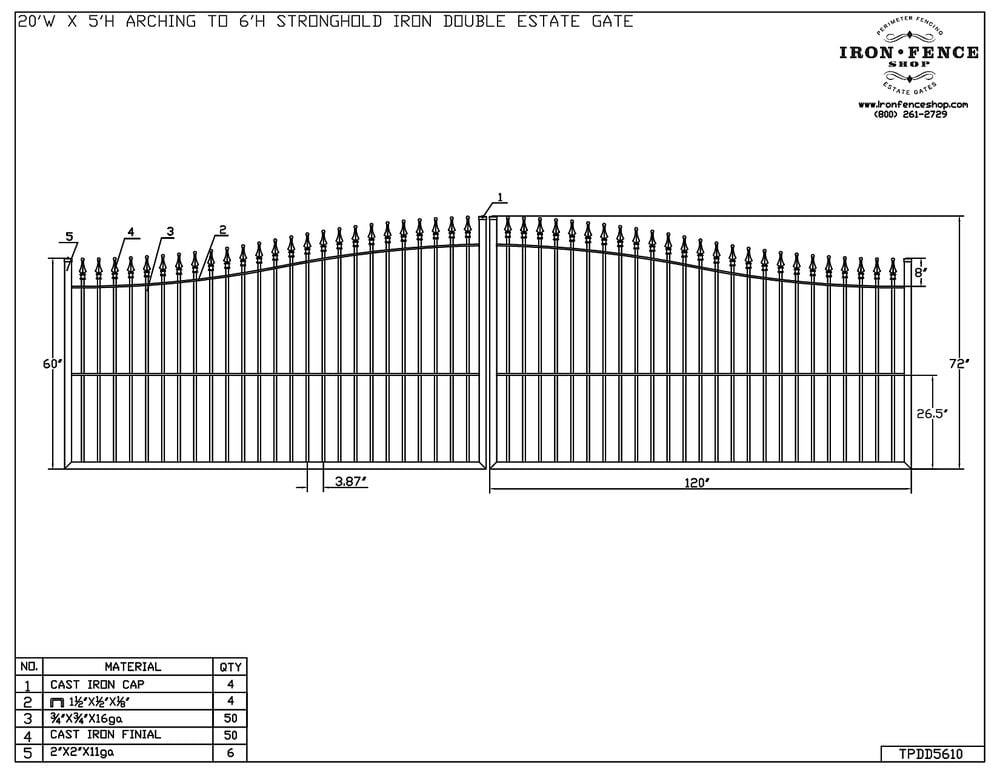

TPDD5610

5' Arching to 6' H x 20'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

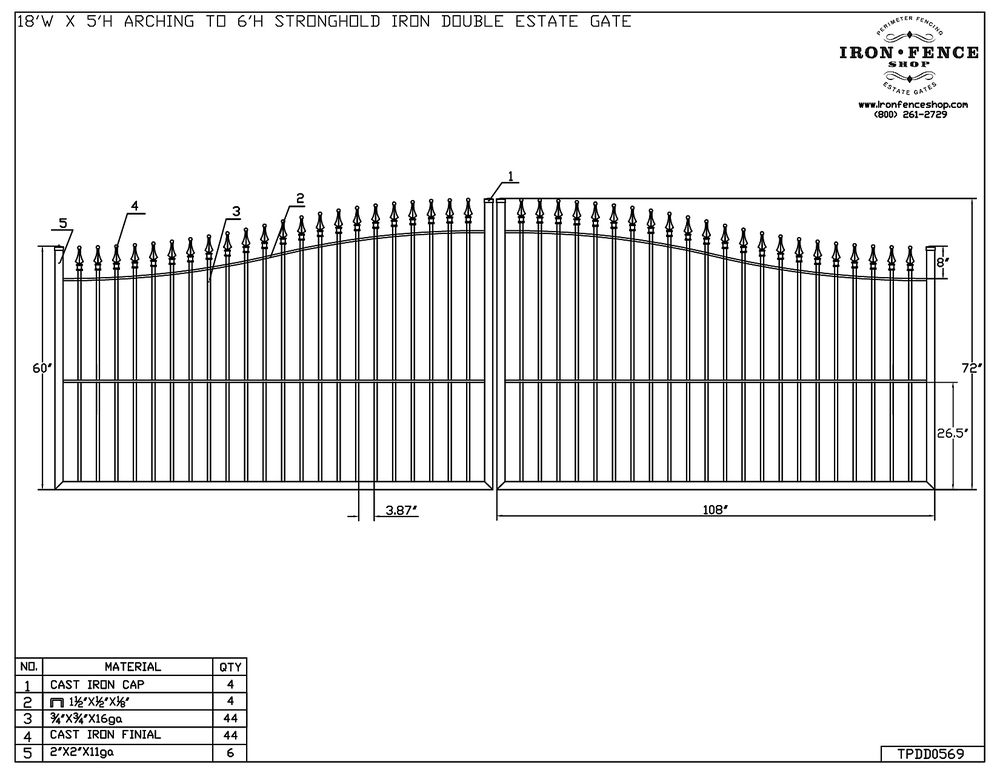

TPDD0569

5' Arching to 6' H x 18'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

TPDD0568

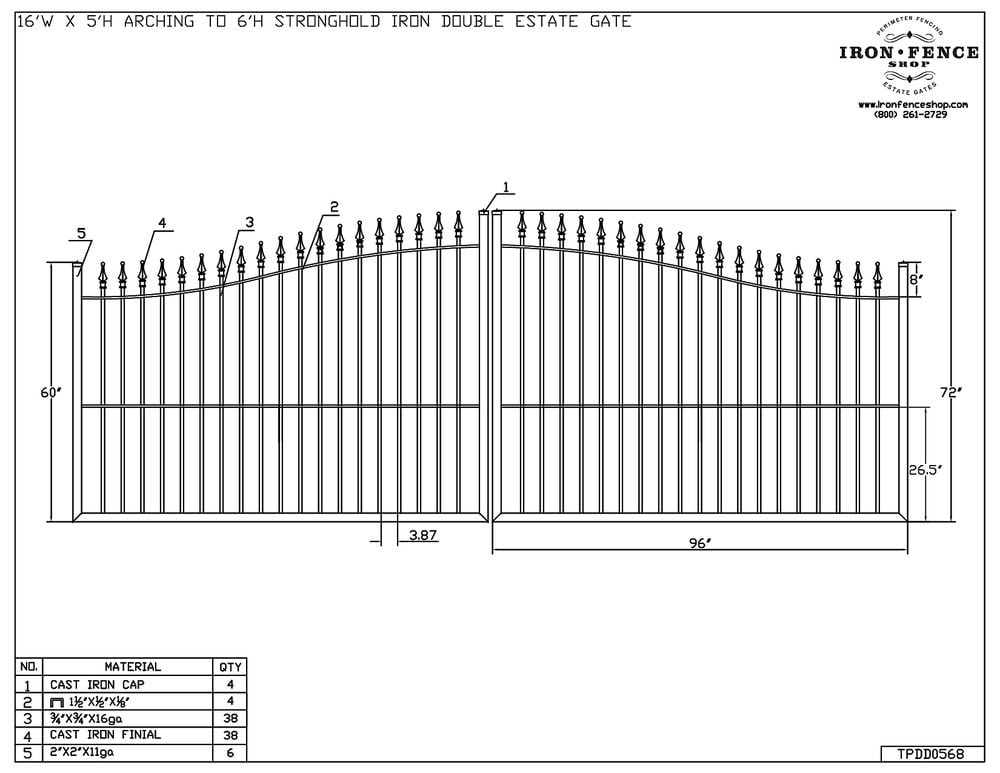

5' Arching to 6' H x 16'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

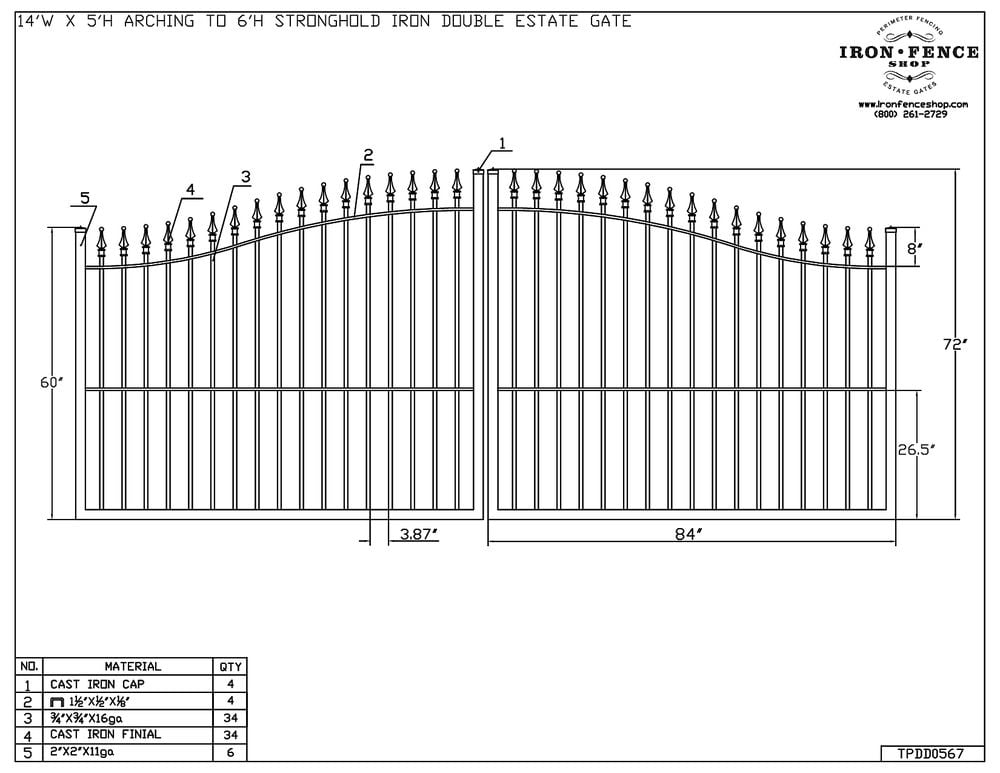

TPDD0567

5' Arching to 6' H x 14'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

TPDD0566

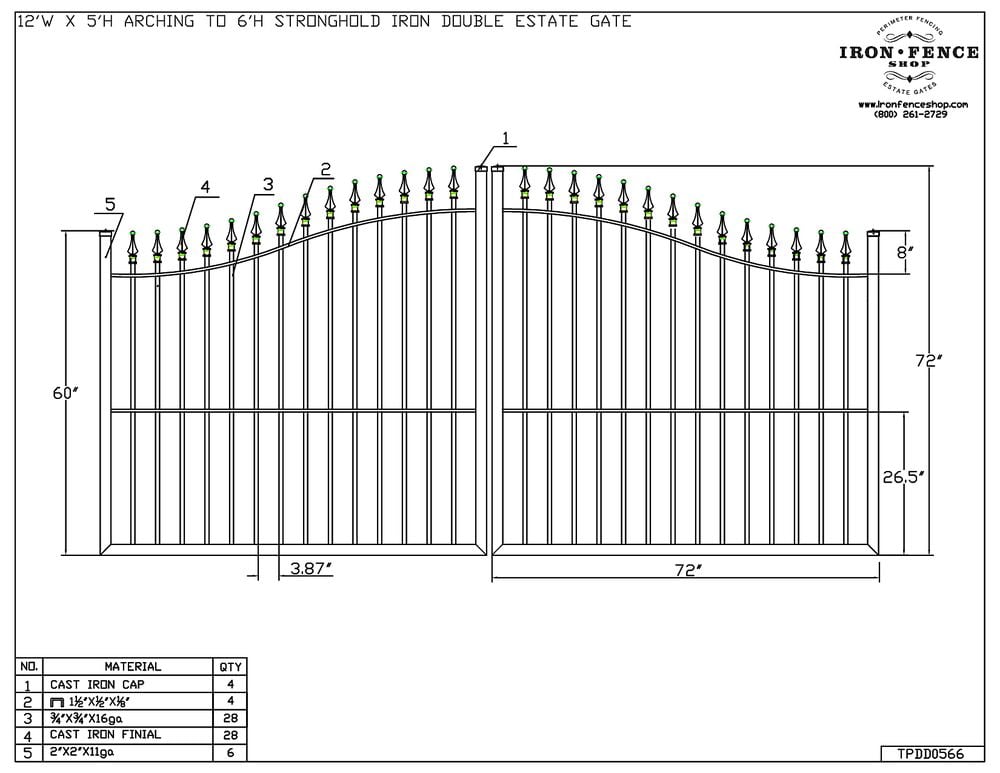

5' Arching to 6' H x 12'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

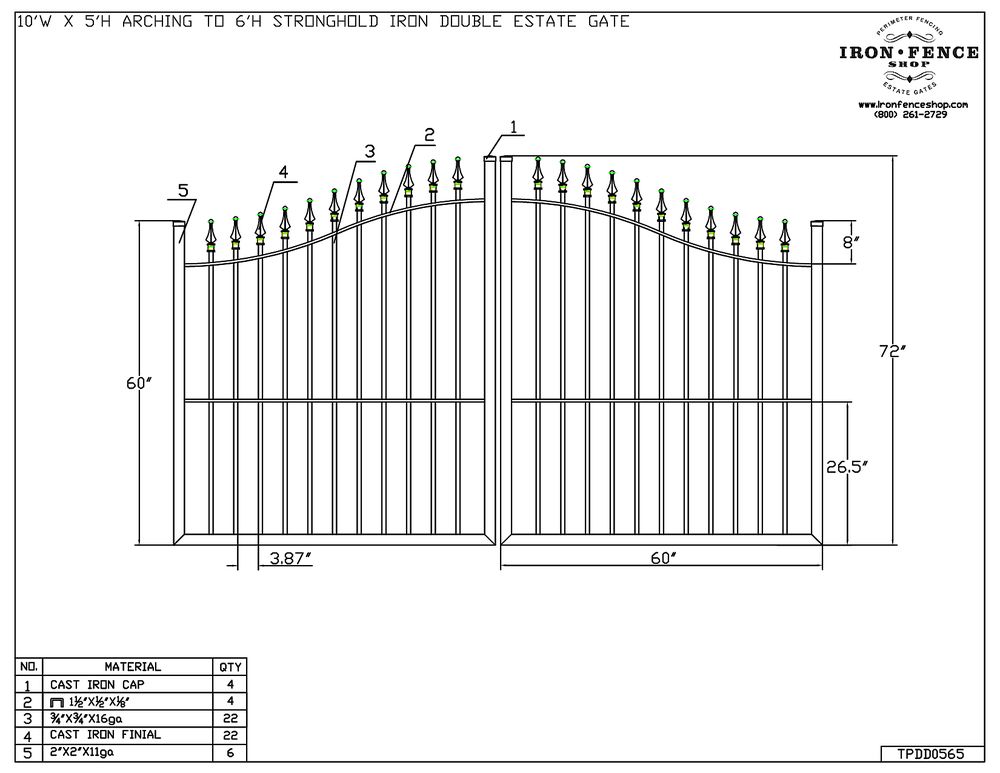

TPDD0565

5' Arching to 6' H x 10'W - Iron - Signature Double Piece Estate Gate - Style #1: Classic Download

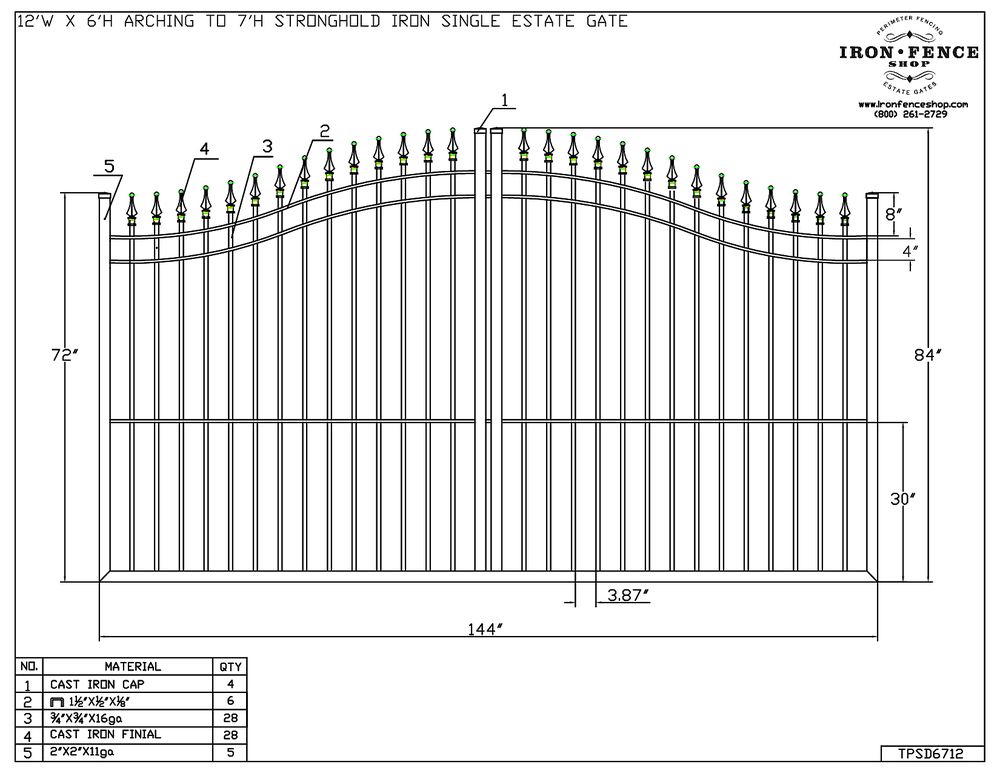

TPSD6712

6' Arching to 7' H x 12'W - Iron - Signature Single Piece Estate Gate - Style #1: Classic Download

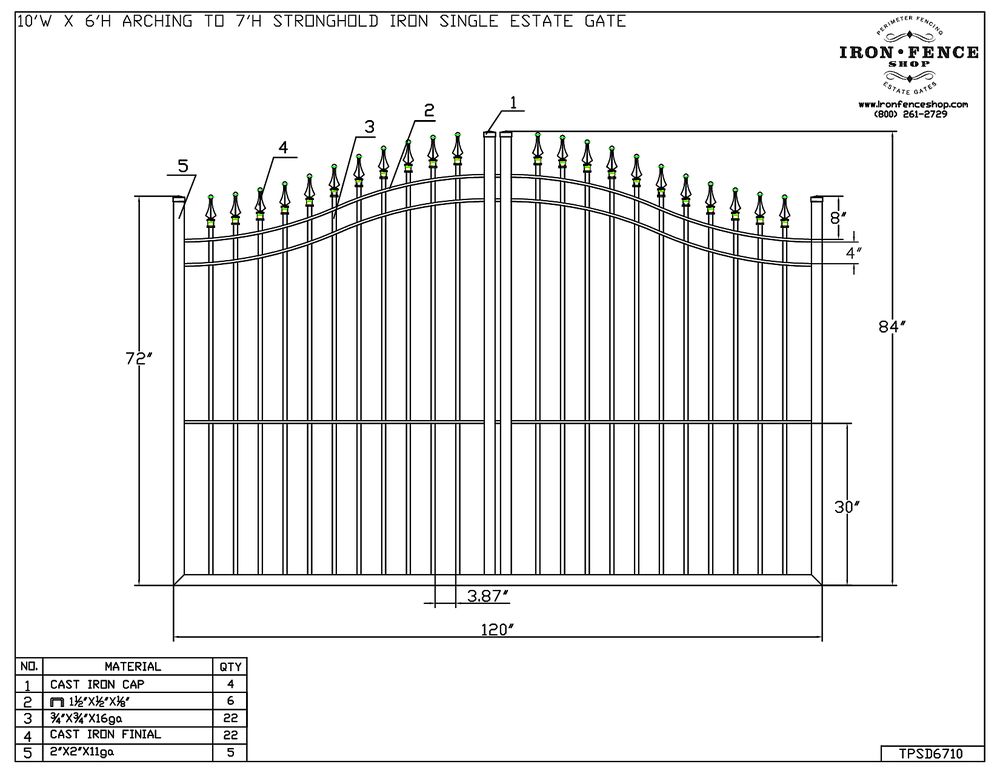

TPSD6710

6' Arching to 7' H x 10'W - Iron - Signature Single Piece Estate Gate - Style #1: Classic Download

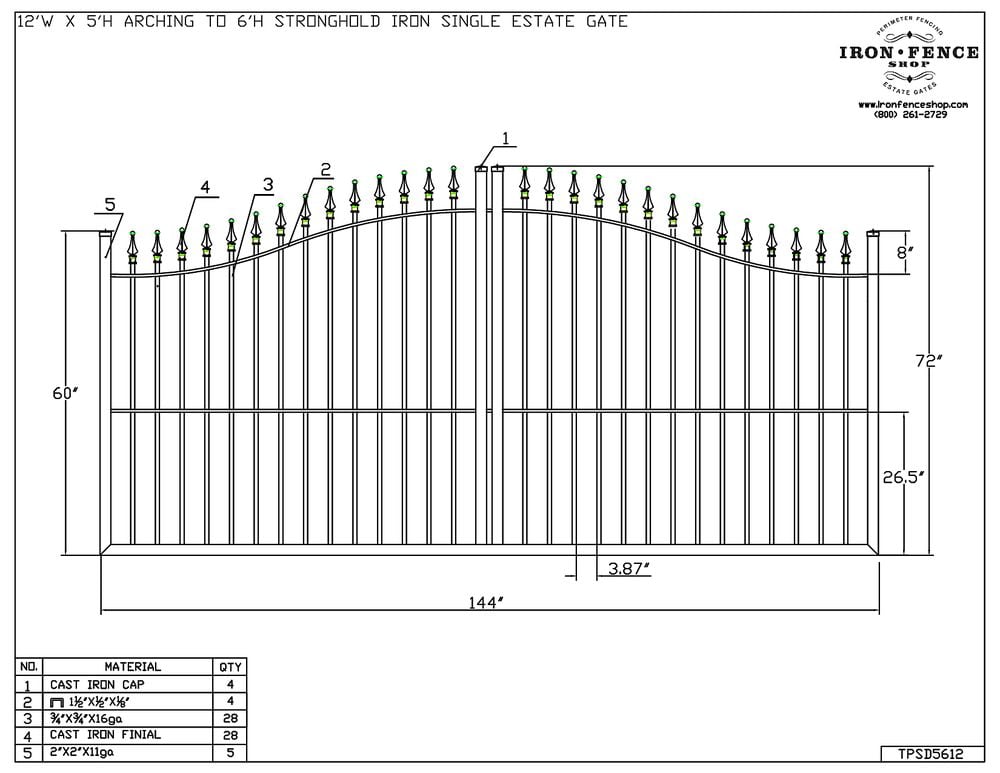

TPSD5612

5' Arching to 6' H x 12'W - Iron - Signature Single Piece Estate Gate - Style #1: Classic Download

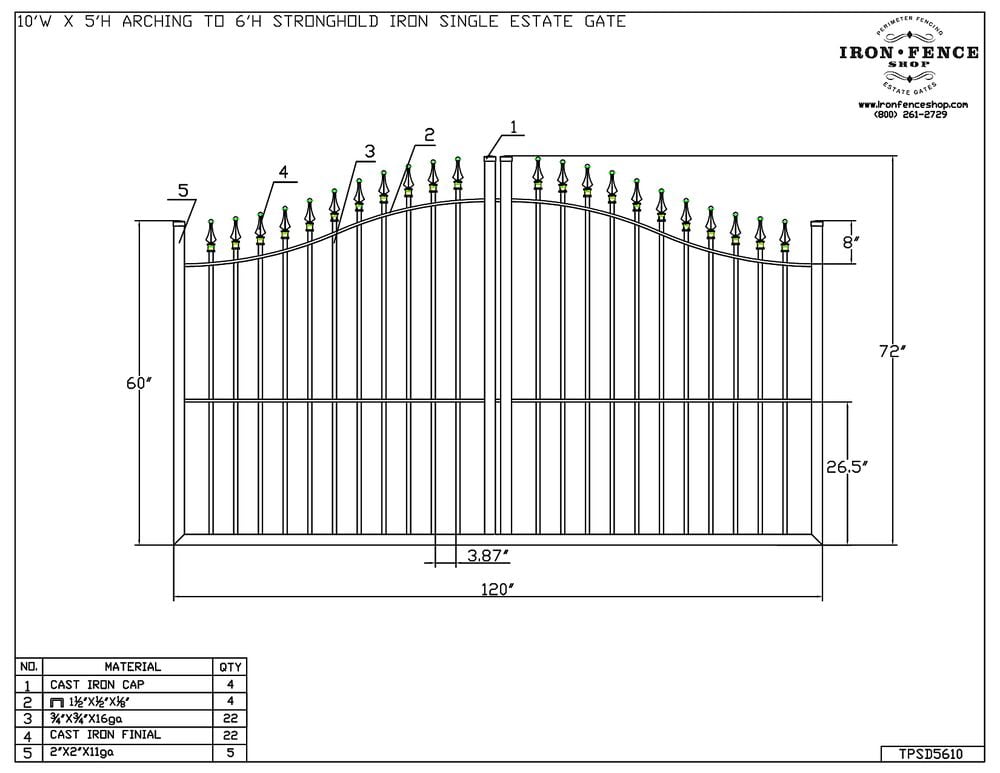

TPSD5610

5' Arching to 6' H x 10'W - Iron - Signature Single Piece Estate Gate - Style #1: Classic Download

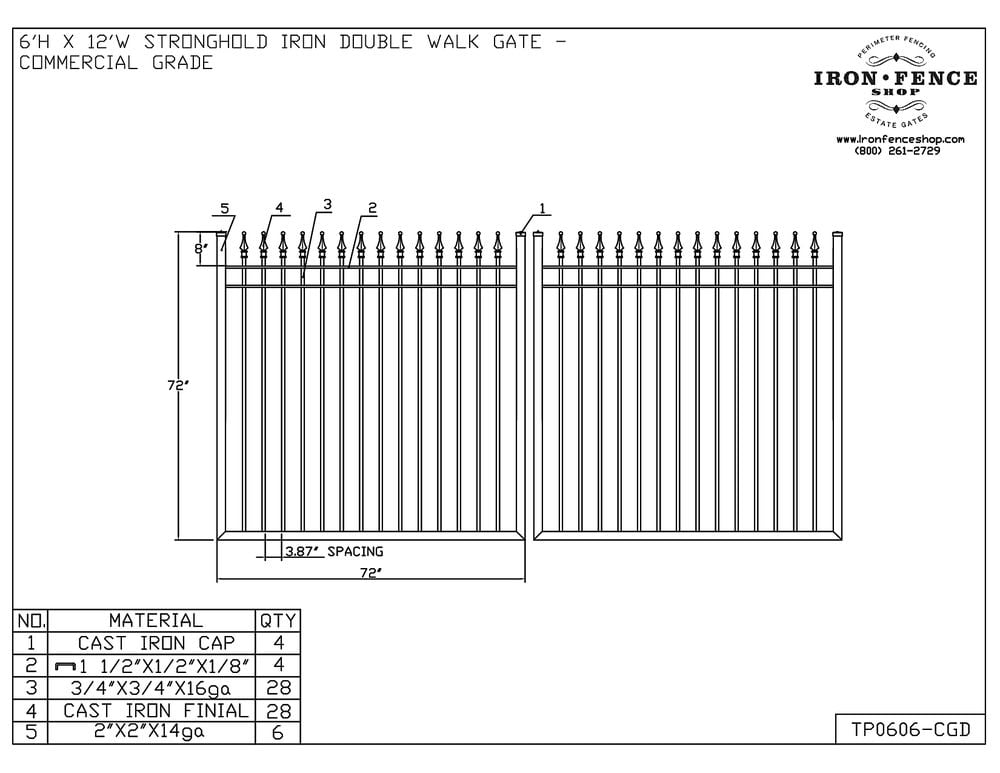

TP0606-CGD

6'H x 12'W - Iron - Signature Double Walk Gate - Style #1: Classic Download

TP0605-CGD

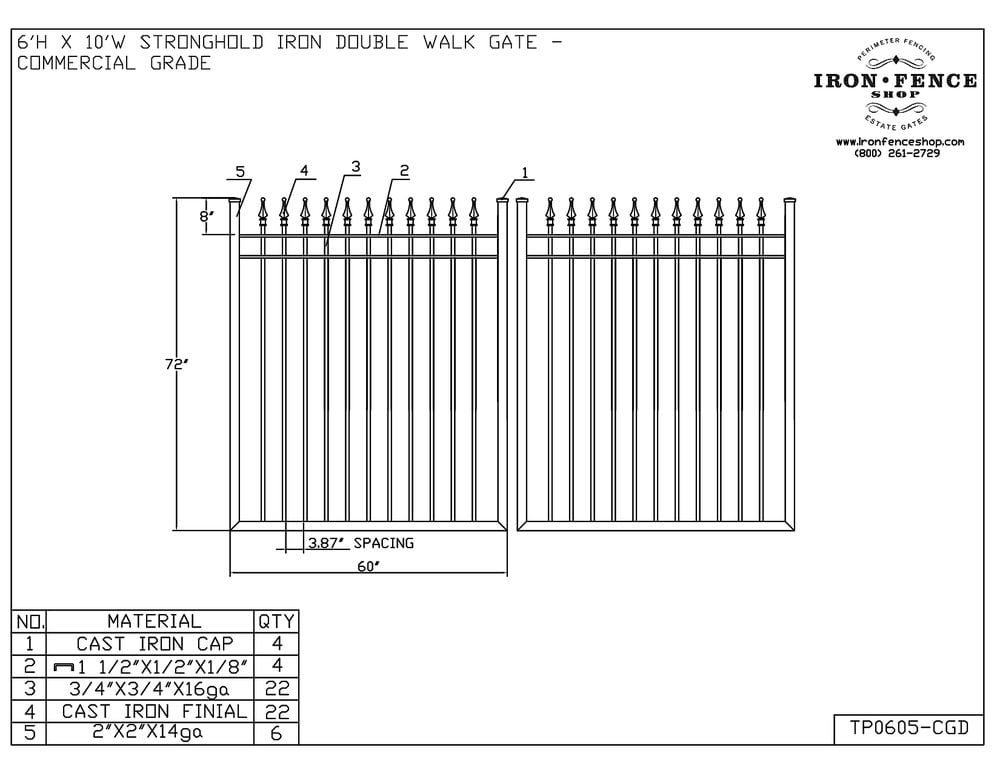

6'H x 10'W - Iron - Signature Double Walk Gate - Style #1: Classic Download

TP0604-CGD

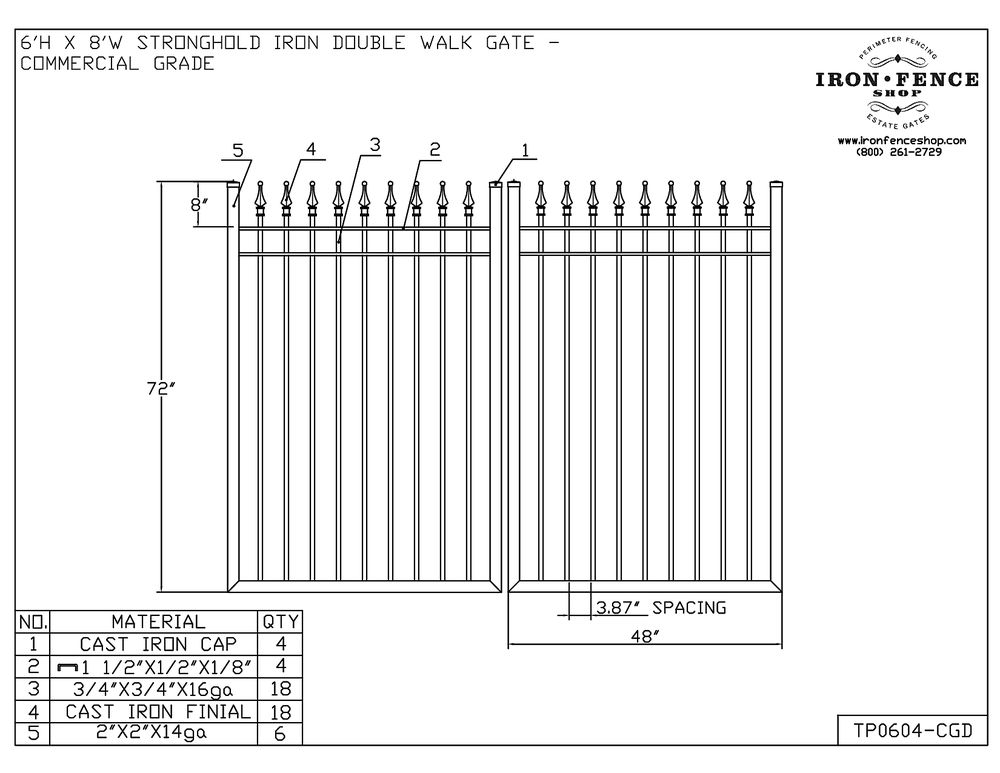

6'H x 8'W - Iron - Signature Double Walk Gate - Style #1: Classic Download

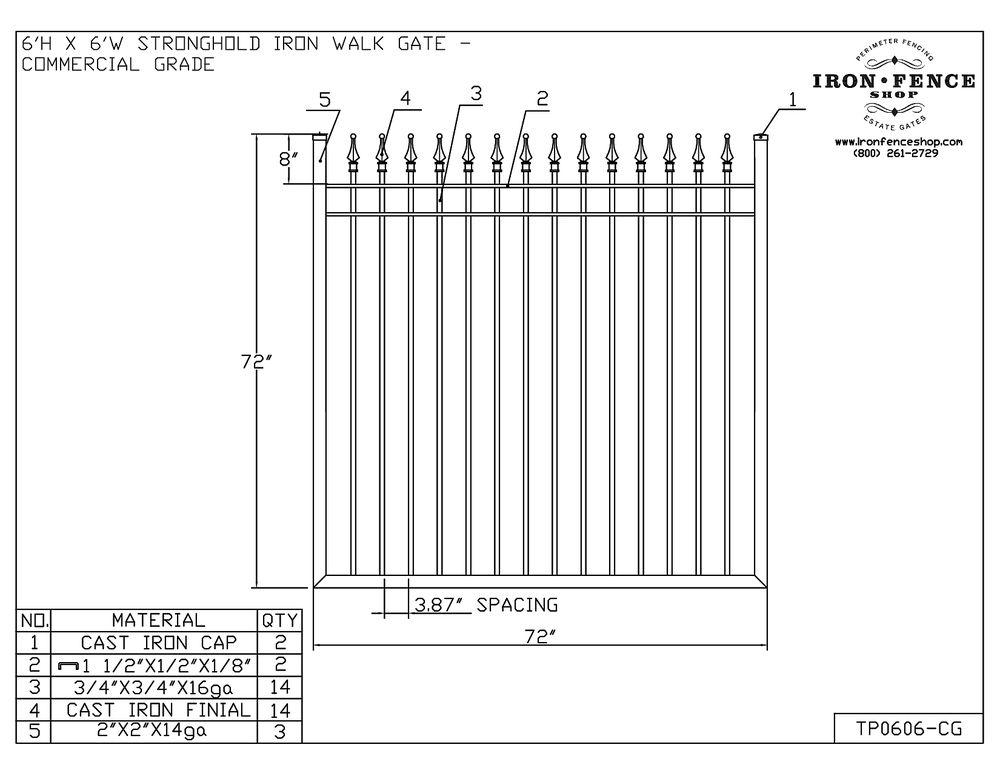

TP0606-CG

6'H x 6'W - Iron - Signature Walk Gate - Style #1: Classic Download

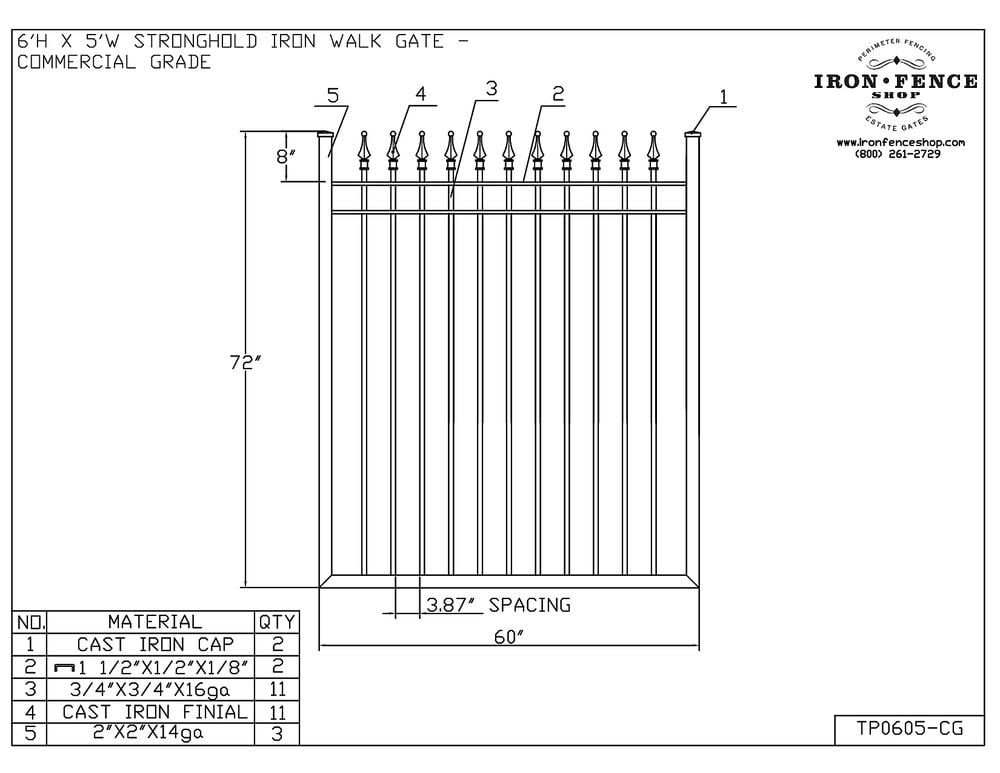

TP0605-CG

6'H x 5'W - Iron - Signature Walk Gate - Style #1: Classic Download

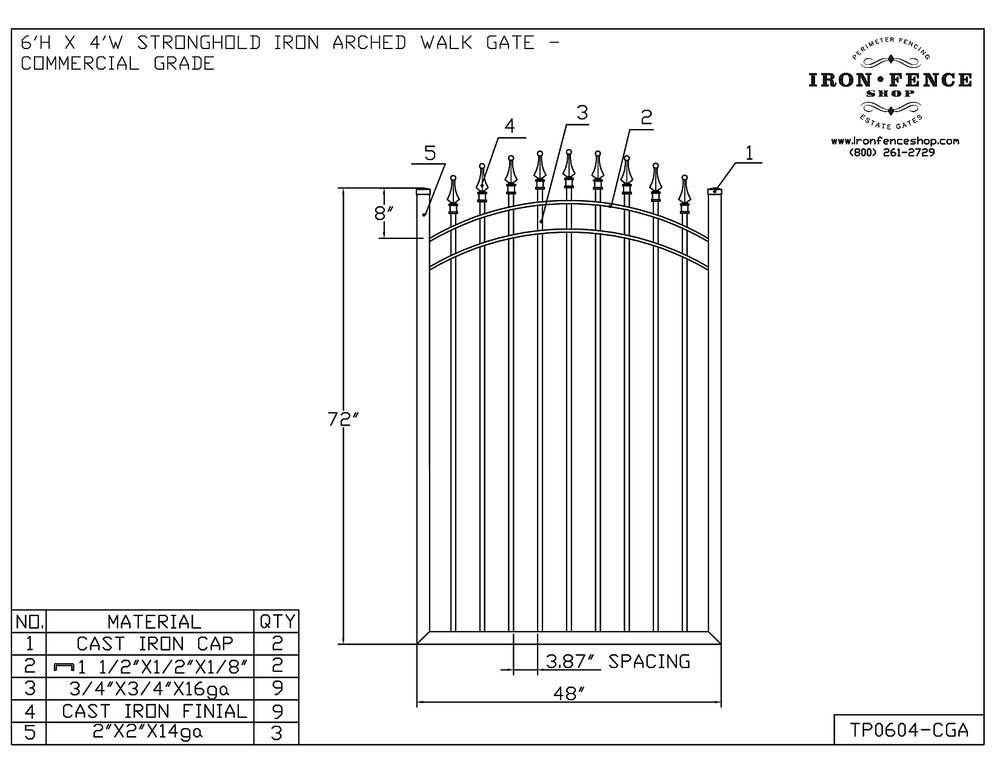

TP0604-CGA

6'H x 4'W - Iron - Signature Arched Walk Gate - Style #1: Classic Download

TP0604-CG

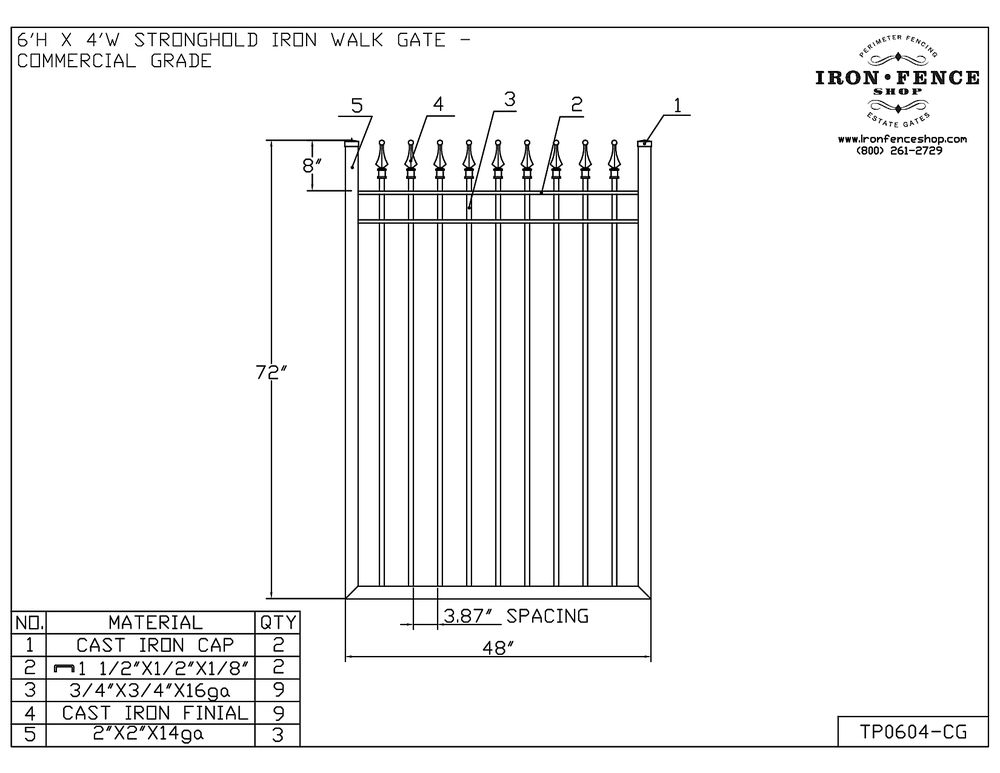

6'H x 4'W - Iron - Signature Walk Gate - Style #1: Classic Download
