CAD Drawings

CAD (Computer Aided Drawing) renderings are helpful for reviewing fence and gate profiles along with specs. They are also useful for presenting to homeowners associations (HOAs), historical societies or your local building department if you need to obtain approval prior to purchase and installation. All available heights and widths are consolidated within each style.

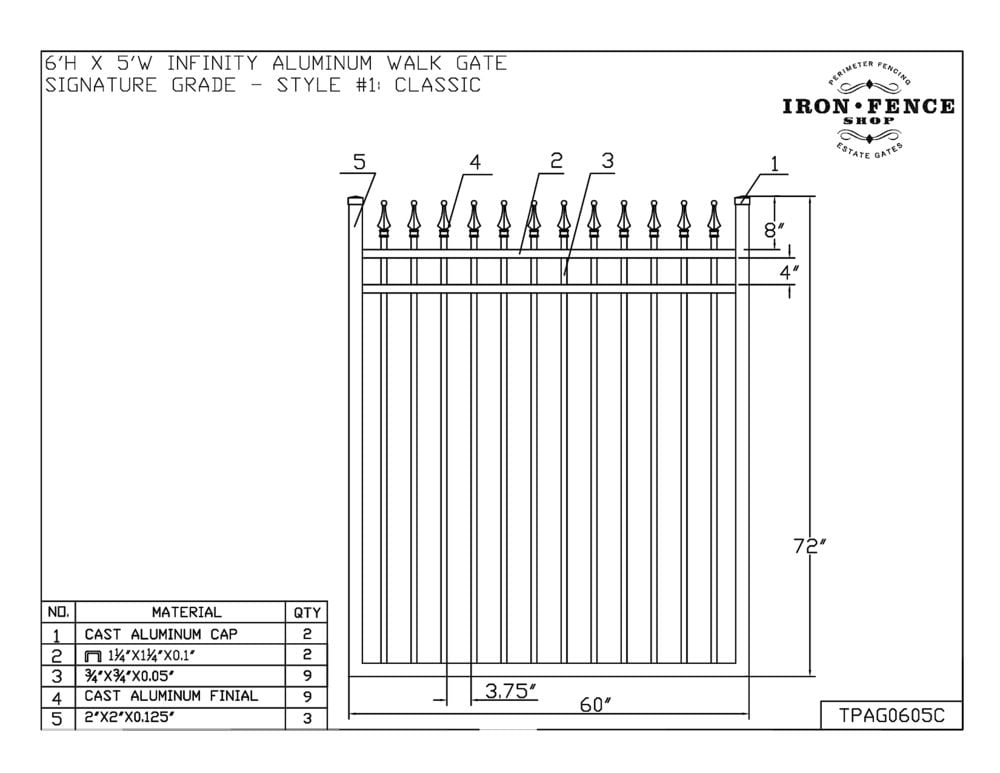

TPAG0605C

6'H x 5'W - Aluminum - Signature Walk Gate - Style #1: Classic Download

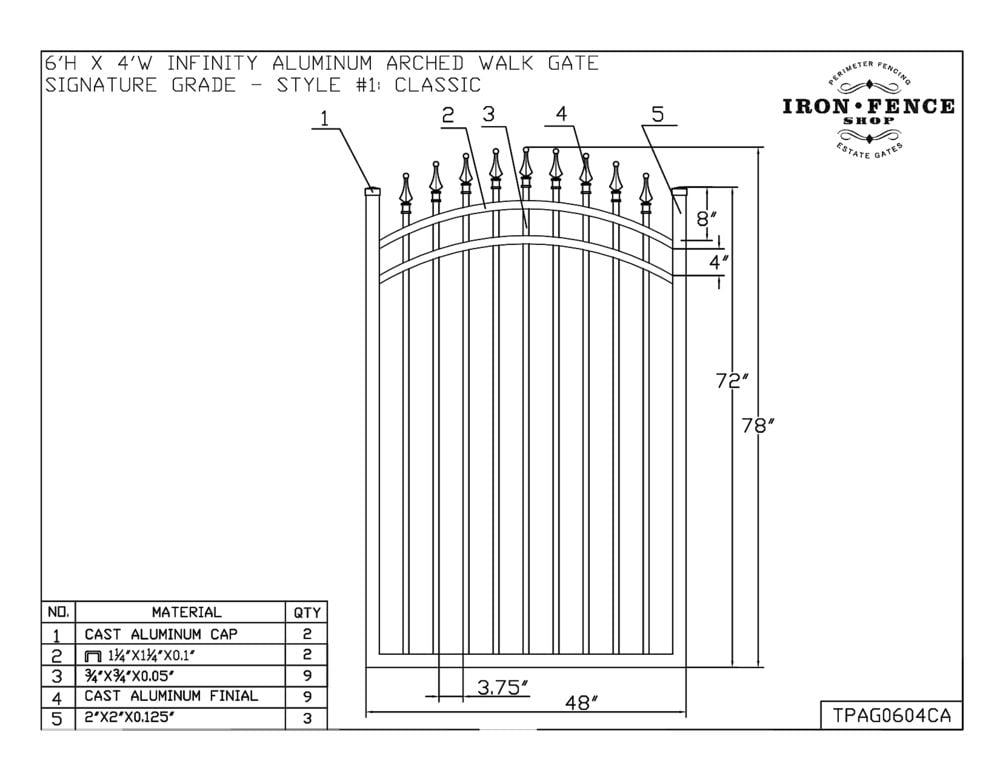

TPAG0604C-A

6'H x 4'W - Aluminum - Signature Arched Walk Gate - Style #1: Classic Download

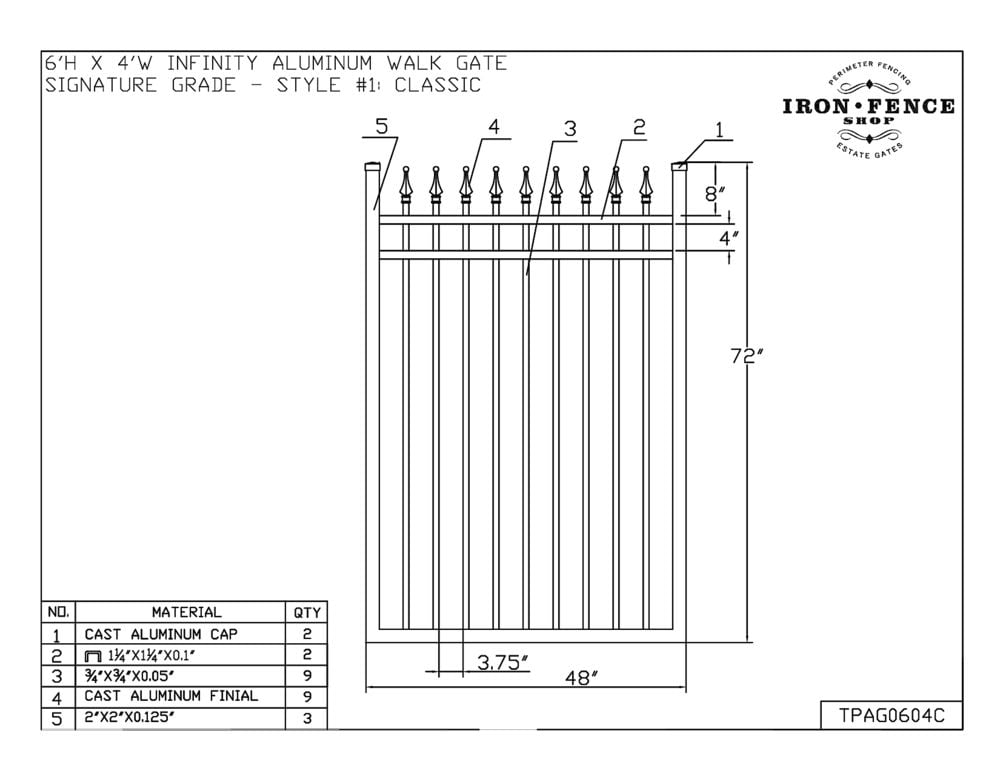

TPAG0604C

6'H x 4'W - Aluminum - Signature Walk Gate - Style #1: Classic Download

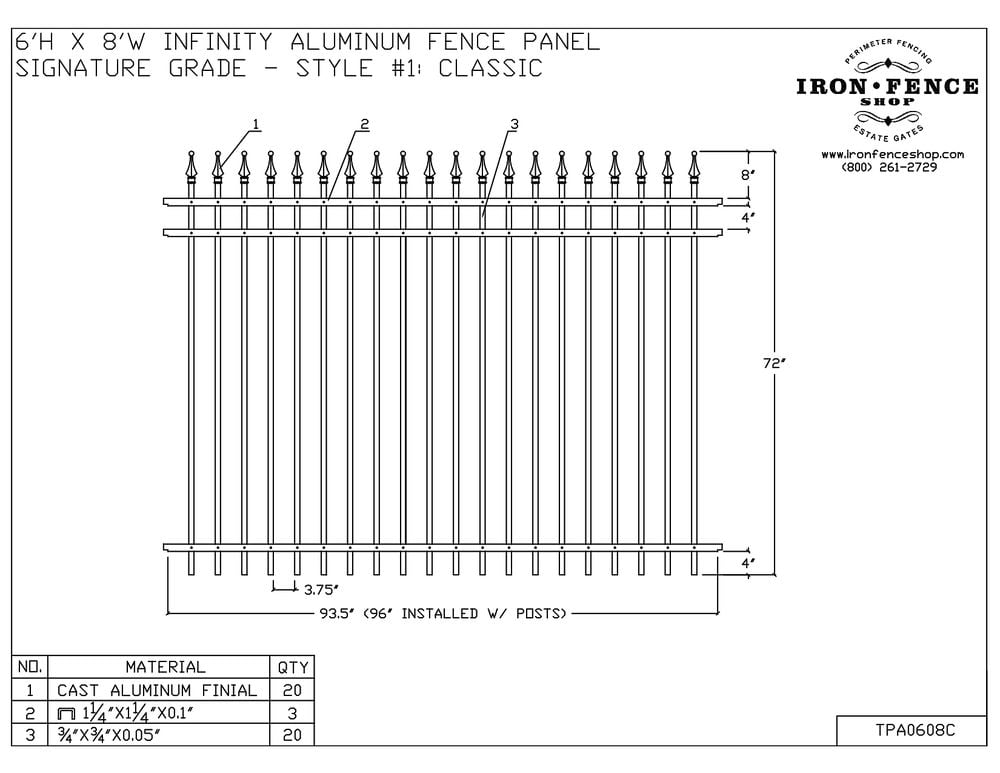

TPA0608C

6'H x 8'W - Aluminum - Signature Fence Panel - Style #1: Classic Download

TP0606-CGD

6'H x 12'W - Iron - Signature Double Walk Gate - Style #1: Classic Download

TP0605-CGD

6'H x 10'W - Iron - Signature Double Walk Gate - Style #1: Classic Download

TP0604-CGD

6'H x 8'W - Iron - Signature Double Walk Gate - Style #1: Classic Download

TP0606-CG

6'H x 6'W - Iron - Signature Walk Gate - Style #1: Classic Download

TP0605-CG

6'H x 5'W - Iron - Signature Walk Gate - Style #1: Classic Download

TP0604-CGA

6'H x 4'W - Iron - Signature Arched Walk Gate - Style #1: Classic Download

TP0604-CG

6'H x 4'W - Iron - Signature Walk Gate - Style #1: Classic Download

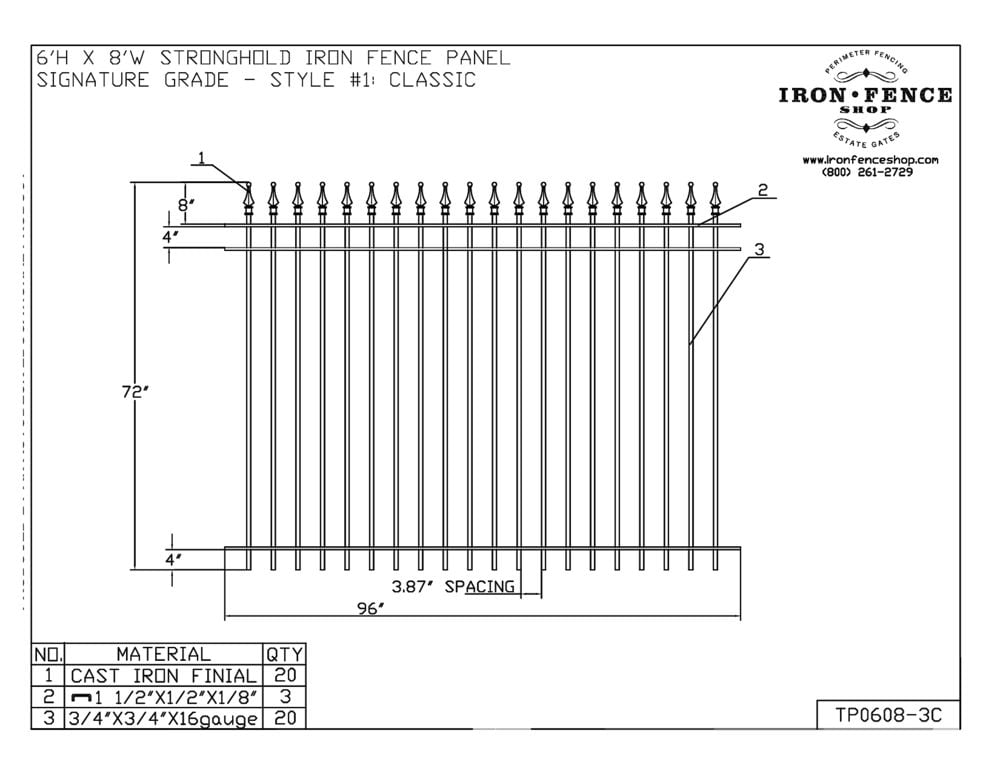

TP0608-3C

6'H x 8'W - Iron - Signature Fence Panel - Style #1: Classic Download

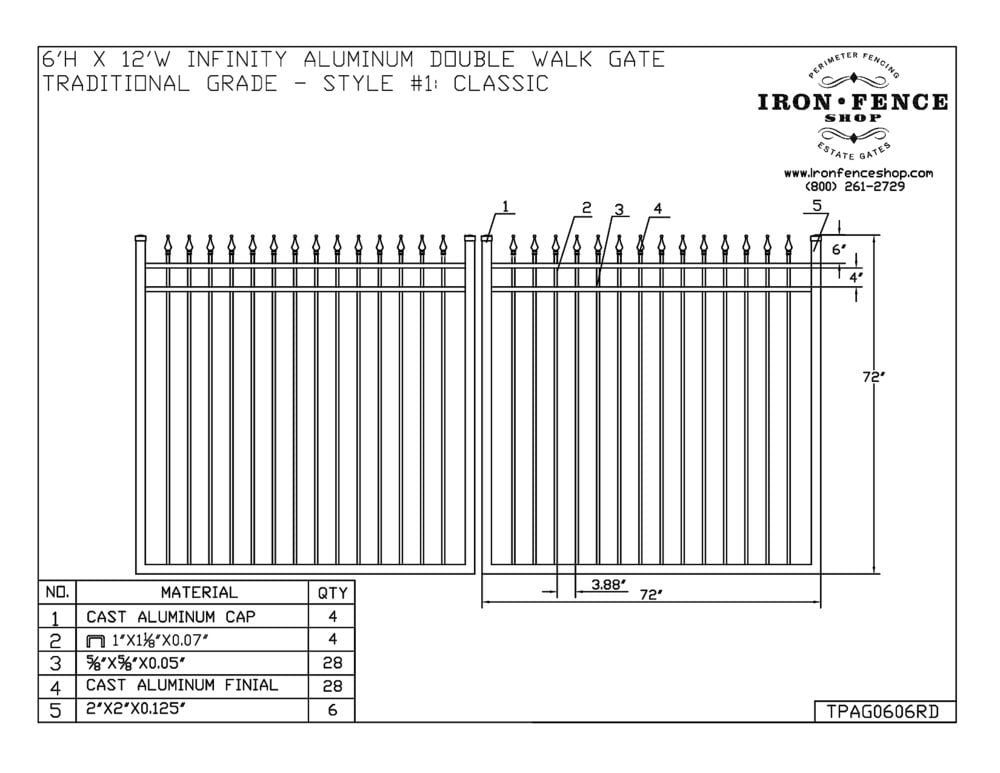

TPAG0606RD

6'H x 12'W - Aluminum - Traditional Double Walk Gate - Style #1: Classic Download

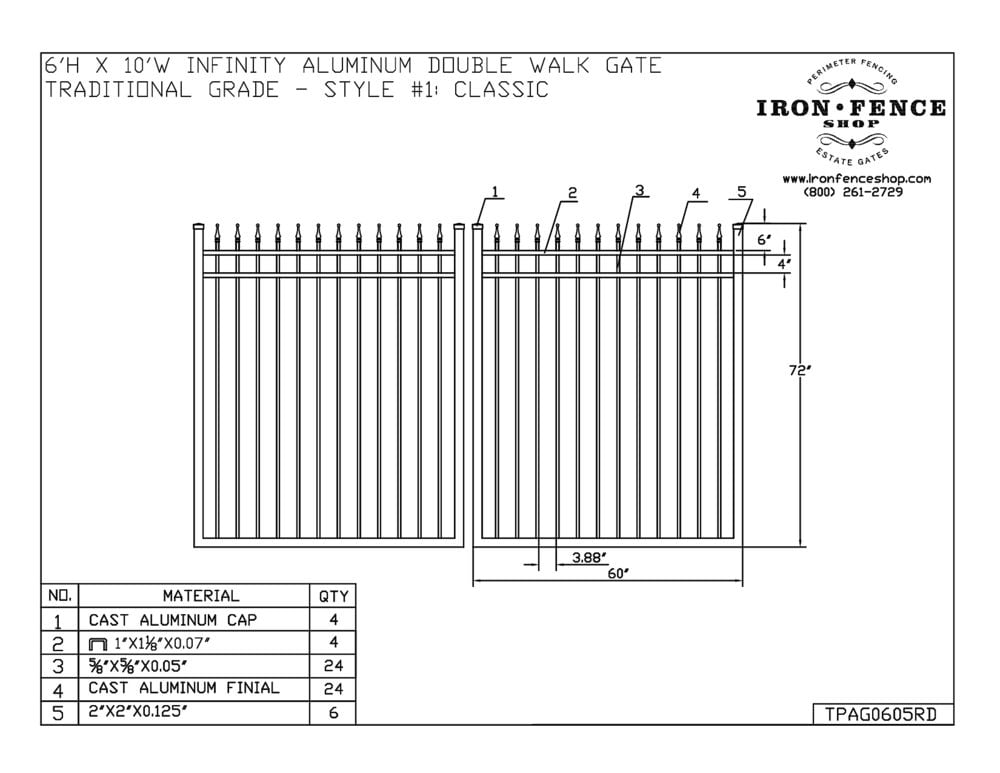

TPAG0605RD

6'H x 10'W - Aluminum - Traditional Double Walk Gate - Style #1: Classic Download

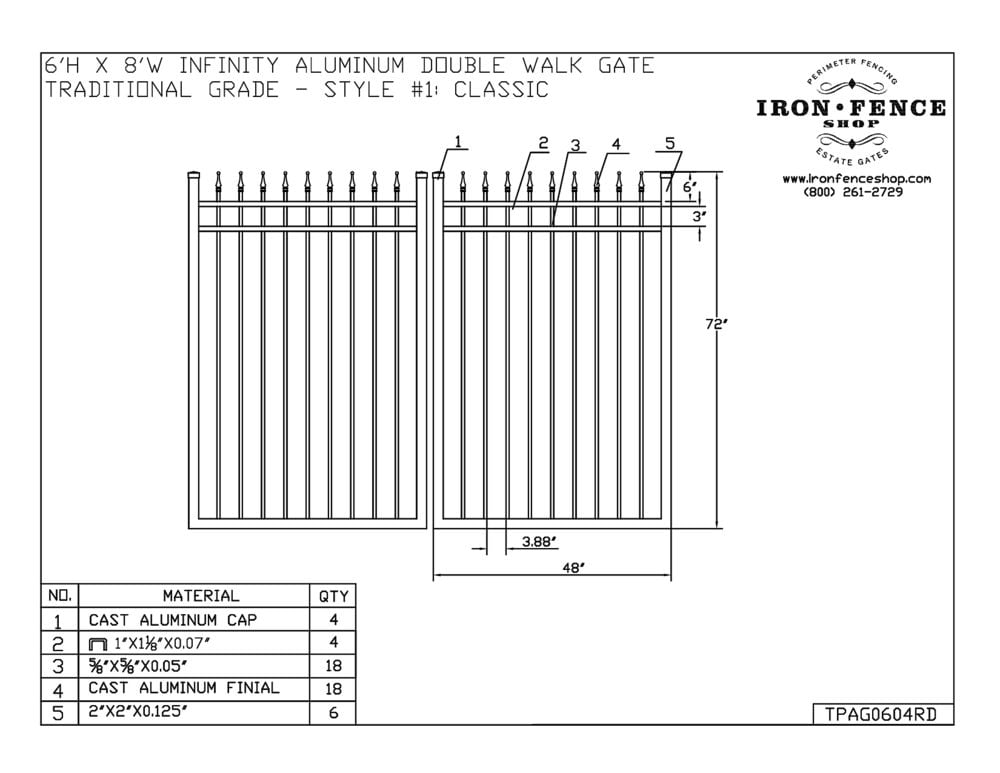

TPAG0604RD

6'H x 8'W - Aluminum - Traditional Double Walk Gate - Style #1: Classic Download

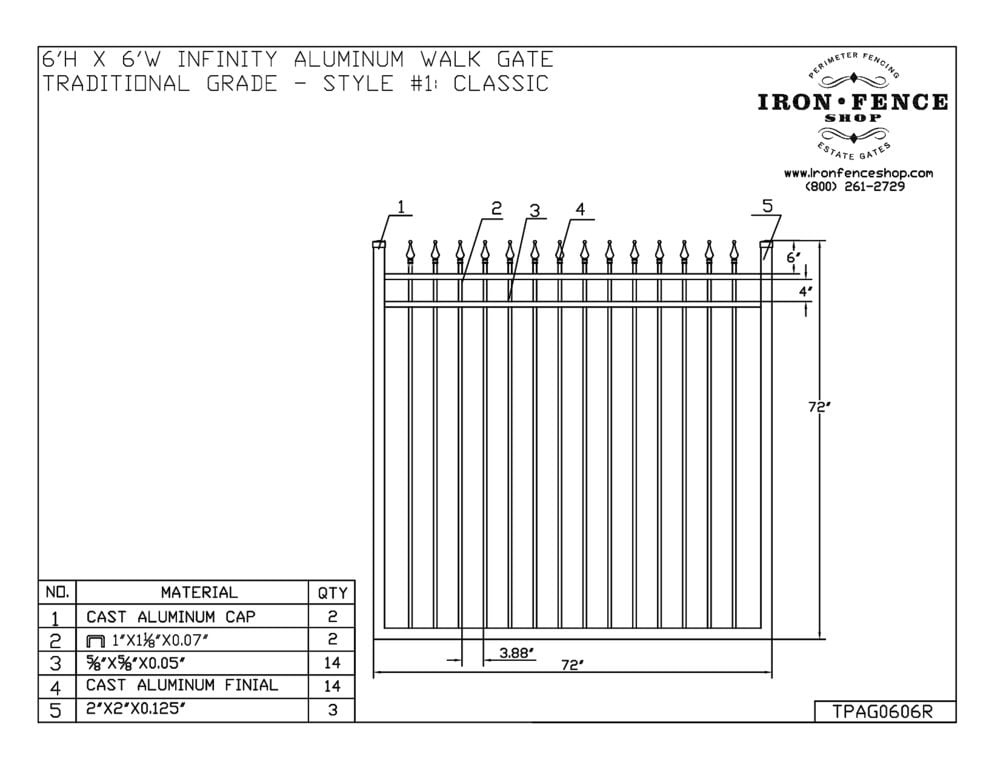

TPAG0606R

6'H x 6'W - Aluminum - Traditional Walk Gate - Style #1: Classic Download

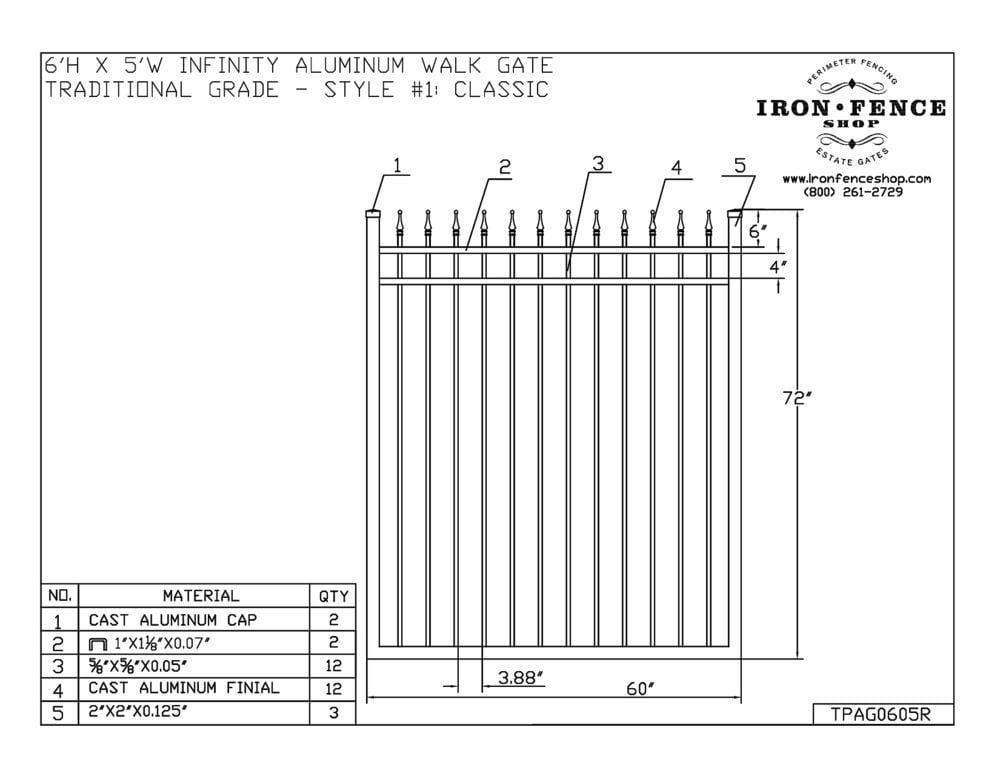

TPAG0605R

6'H x 5'W - Aluminum - Traditional Walk Gate - Style #1: Classic Download

TPAG0604R-A

6'H x 4'W - Aluminum - Traditional Arched Walk Gate - Style #1: Classic Download

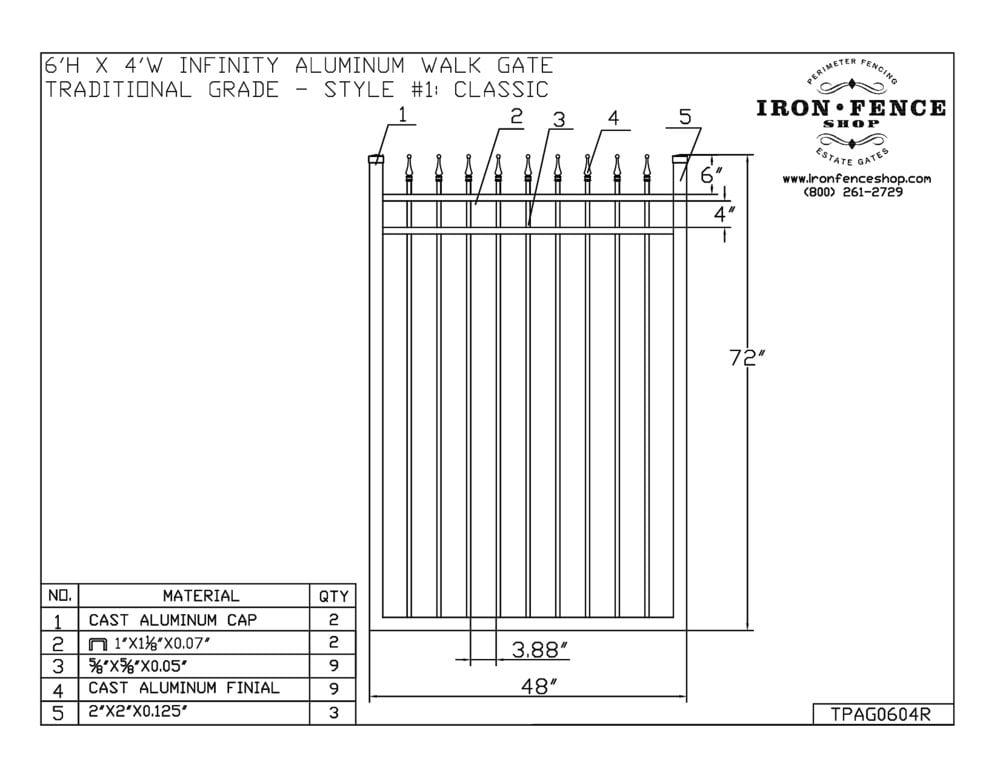

TPAG0604R

6'H x 4'W - Aluminum - Traditional Walk Gate - Style #1: Classic Download

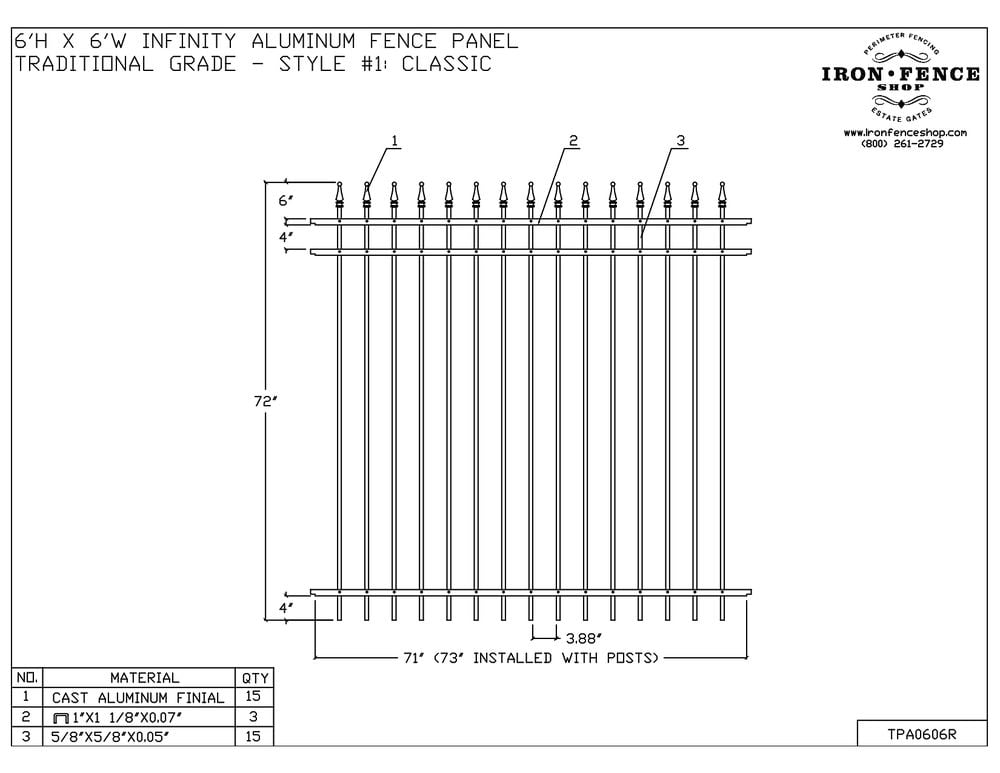

TPA0606R

6'H x 6'W - Aluminum - Traditional Fence Panel - Style #1: Classic Download

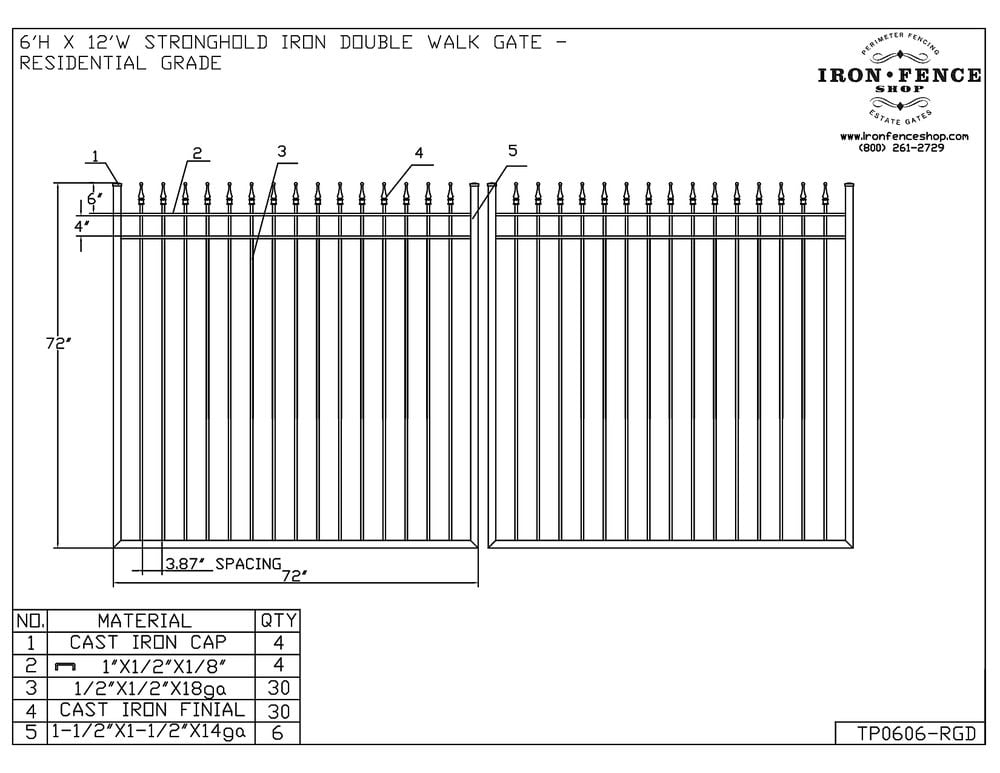

TP0606-RGD

6'H x 12'W - Iron - Traditional Double Walk Gate - Style #1: Classic Download

TP0605-RGD

6'H x 10'W - Iron - Traditional Double Walk Gate - Style #1: Classic Download

TP0604-RGD

6'H x 8'W - Iron - Traditional Double Walk Gate - Style #1: Classic Download

TP0606-RG

6'H x 6'W - Iron - Traditional Walk Gate - Style #1: Classic Download
