CAD Drawings

CAD (Computer Aided Drawing) renderings are helpful for reviewing fence and gate profiles along with specs. They are also useful for presenting to homeowners associations (HOAs), historical societies or your local building department if you need to obtain approval prior to purchase and installation. All available heights and widths are consolidated within each style.

TP0405HPGD

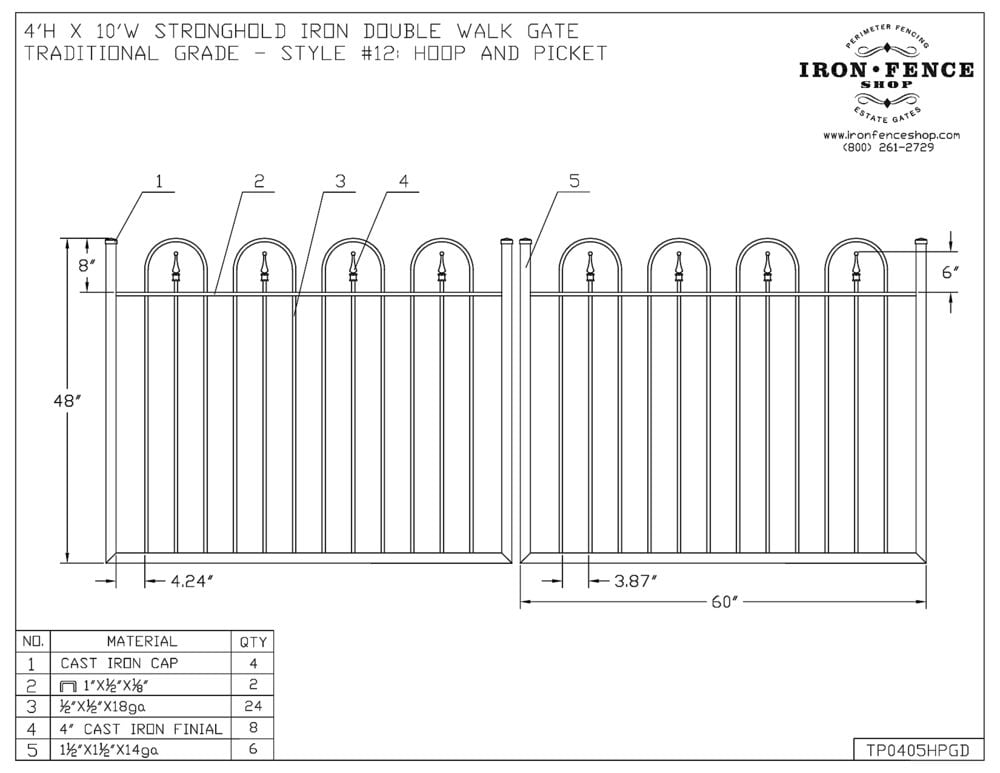

4'H x 10'W - Iron - Traditional Grade Double Walk Gate - Style #12: Hoop and Picket Download

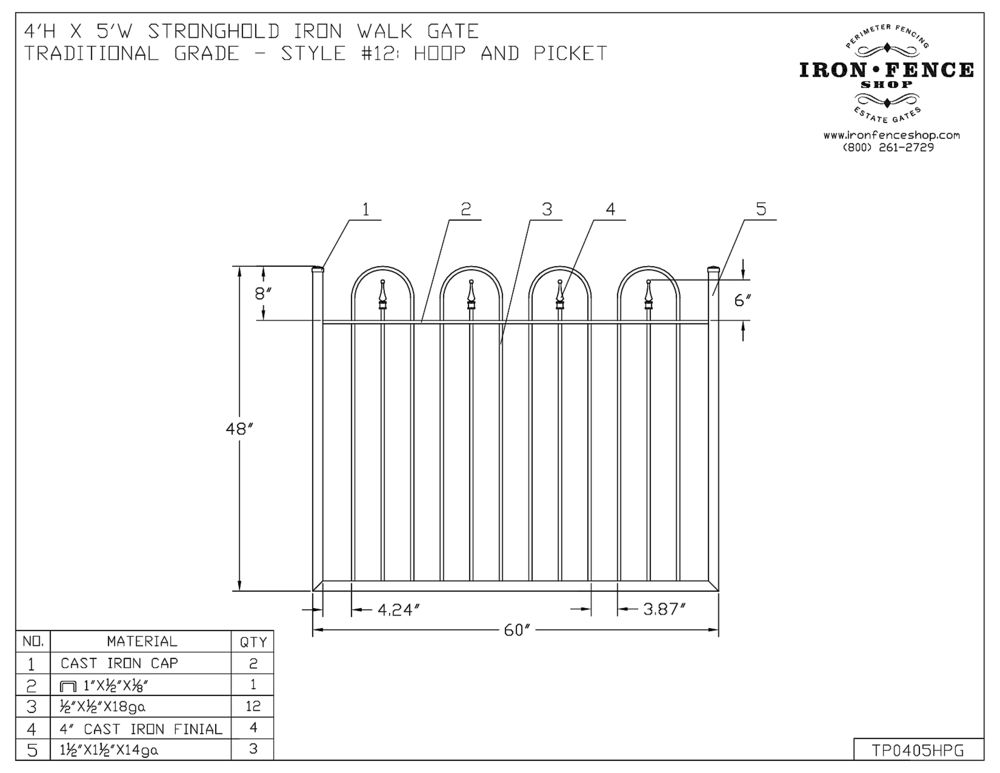

TP0405HPG

4'H x 5'W - Iron - Traditional Grade Walk Gate - Style #12: Hoop and Picket Download

TP0408HPGD

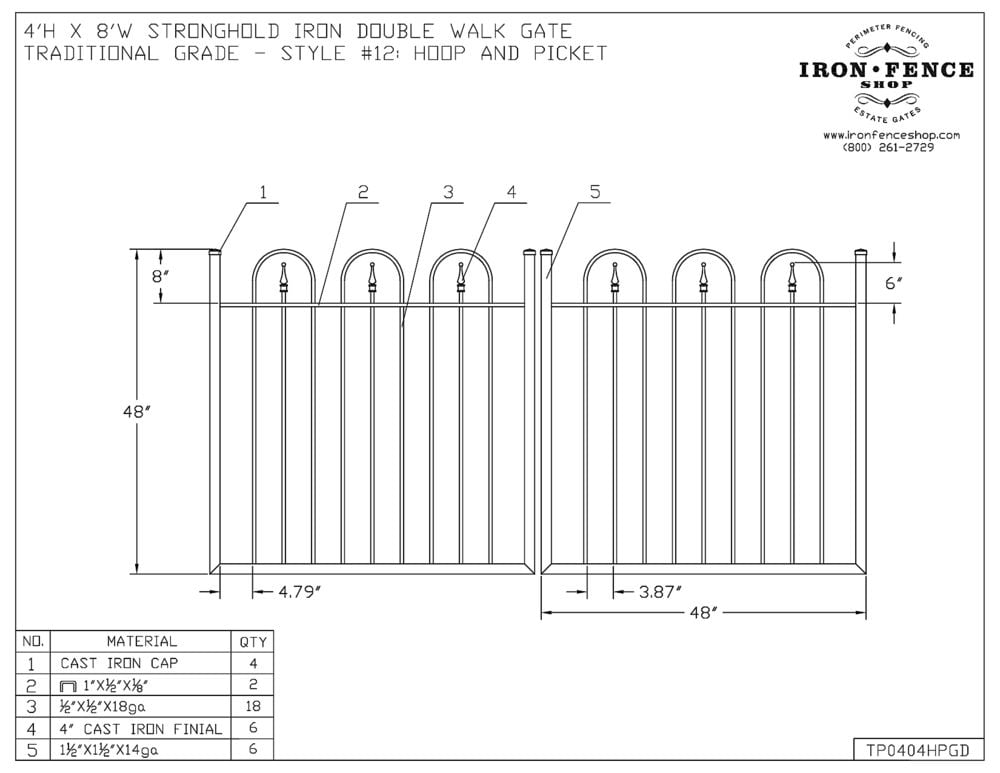

4'H x 8'W - Iron - Traditional Grade Double Walk Gate - Style #12: Hoop and Picket Download

TP0404HPG

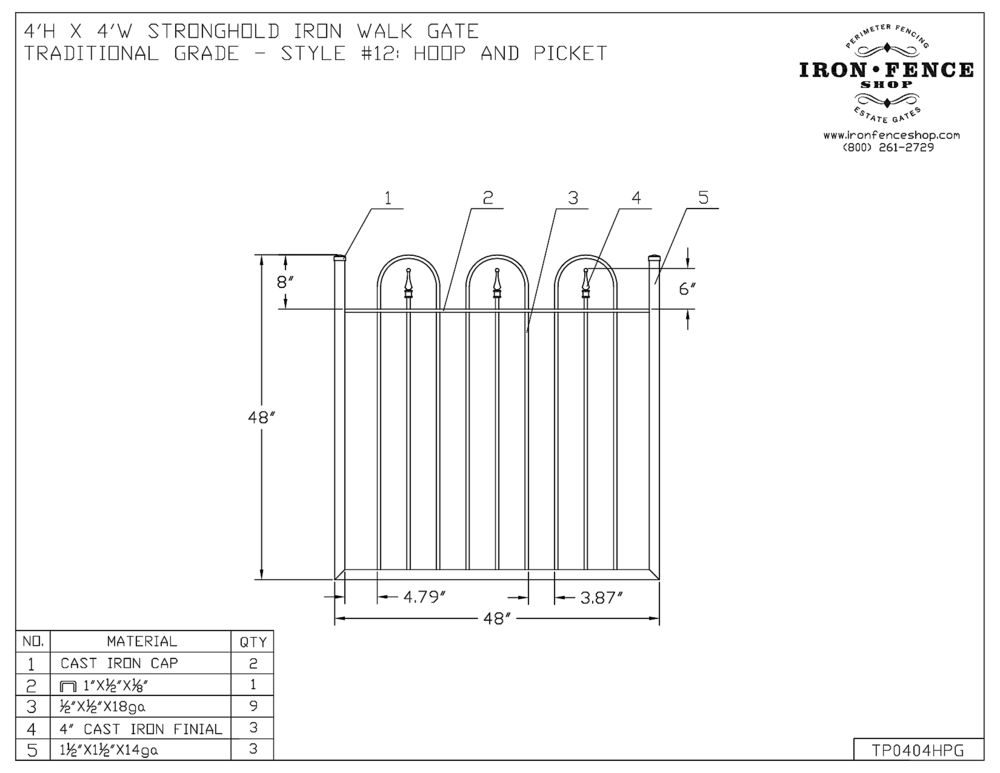

4'H x 4'W - Iron - Traditional Grade Walk Gate - Style #12: Hoop and Picket Download

TP0408HP

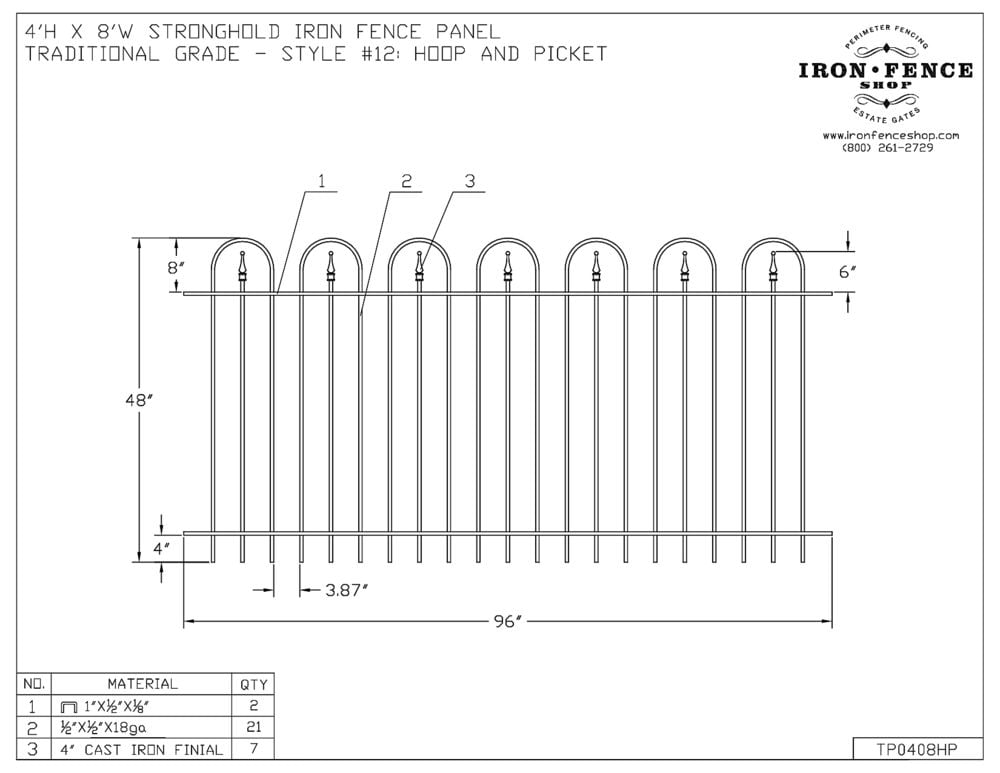

4'H x 8'W - Iron - Traditional Grade Fence Panel - Style #12: Hoop and Picket Download

TP0305HPGD

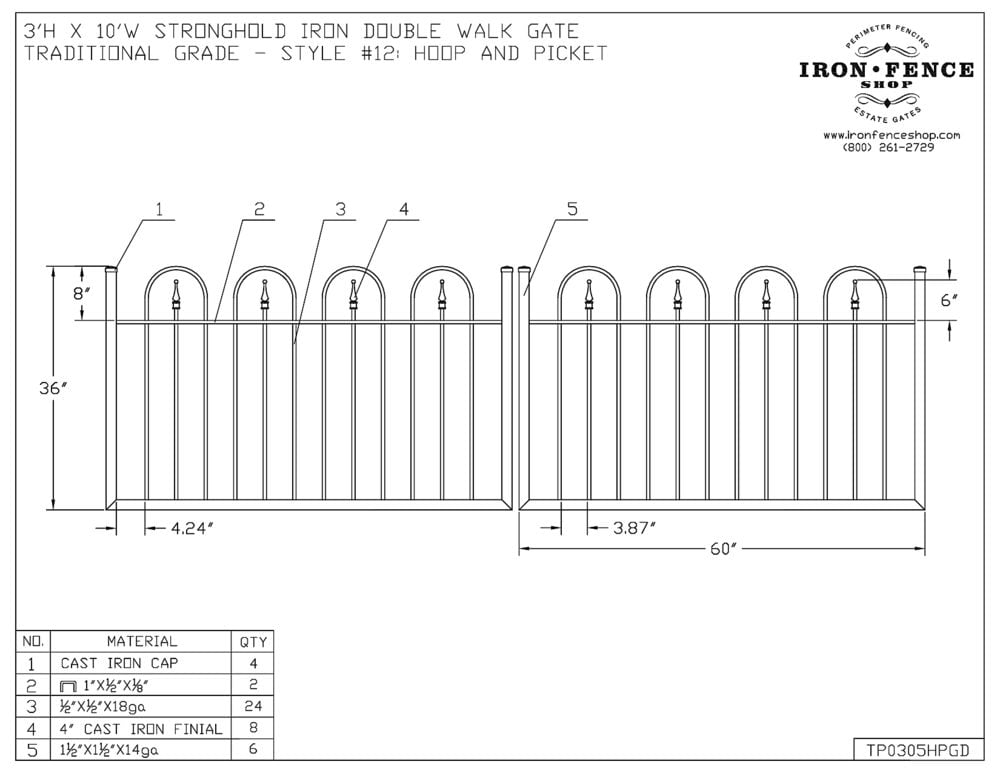

3'H x 10'W - Iron - Traditional Grade Double Walk Gate - Style #12: Hoop and Picket Download

TP0305HPG

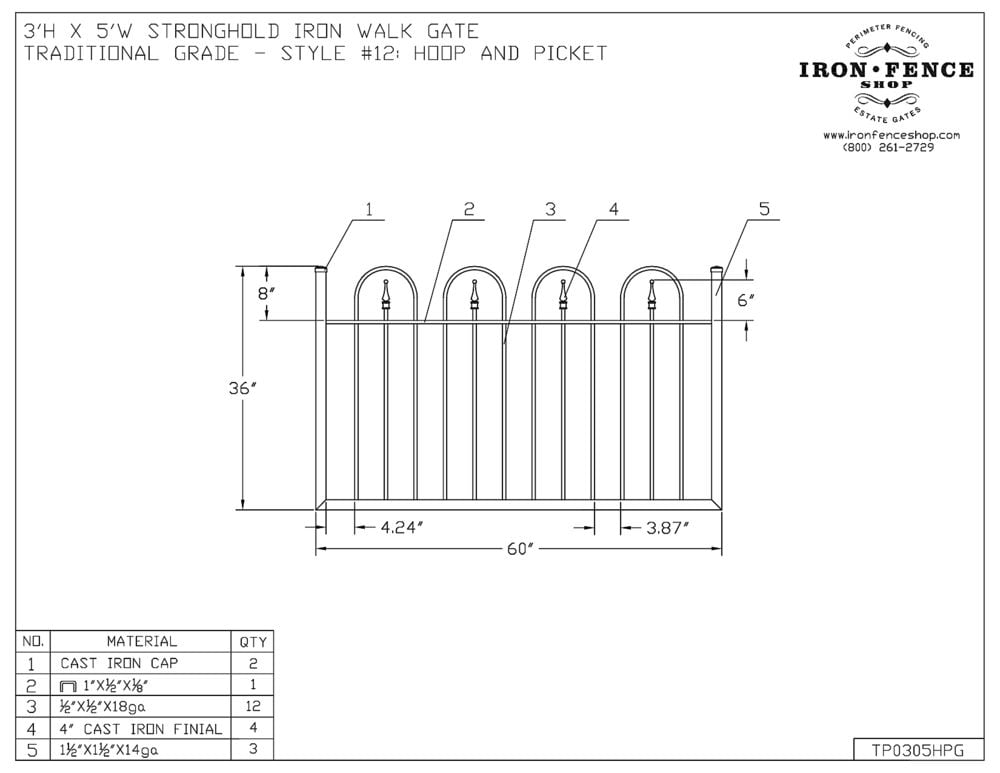

3'H x 5'W - Iron - Traditional Grade Walk Gate - Style #12: Hoop and Picket Download

TP0304HPGD

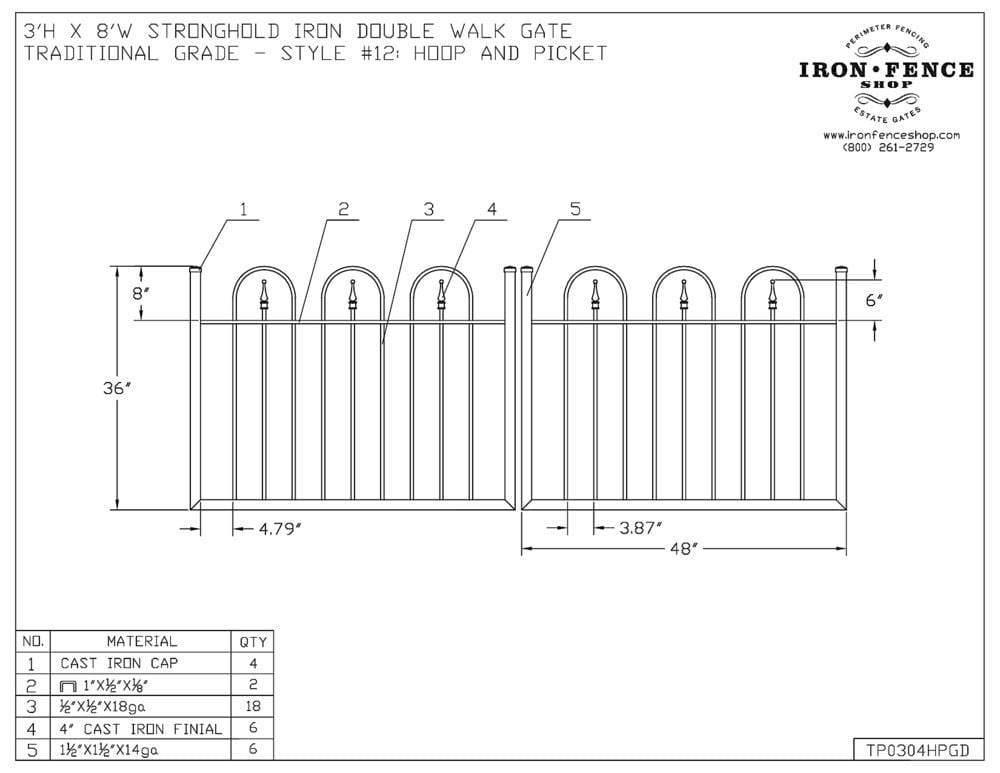

3'H x 8'W - Iron - Traditional Grade Double Walk Gate - Style #12: Hoop and Picket Download

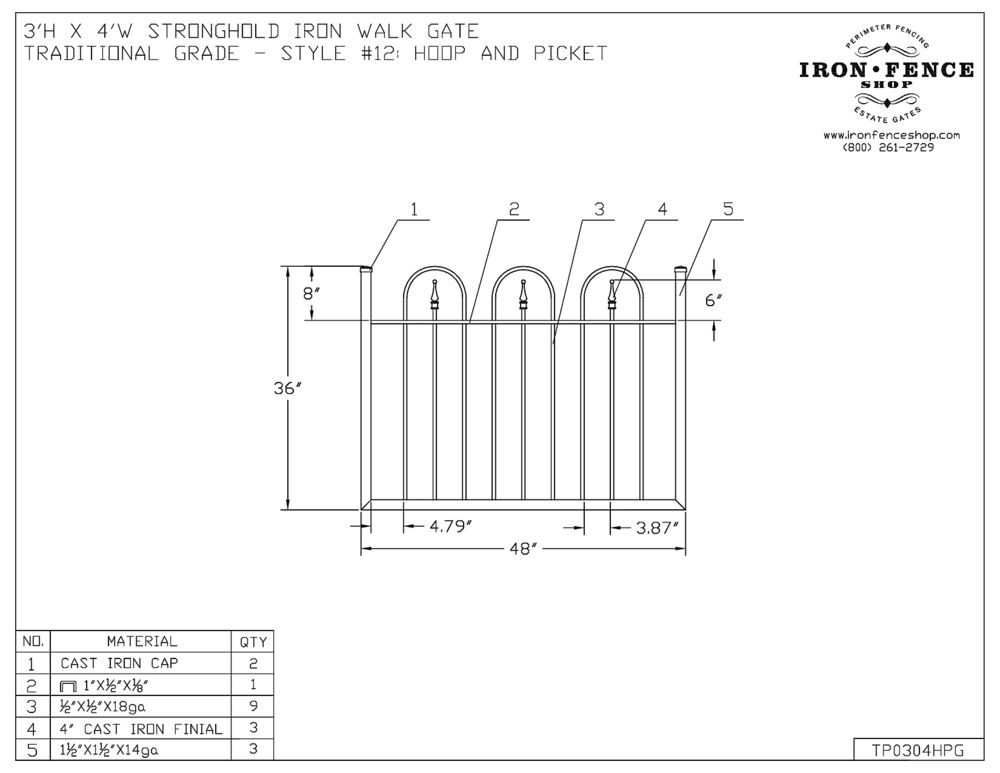

TP0304HPG

3'H x 4'W - Iron - Traditional Grade Walk Gate - Style #12: Hoop and Picket Download

TP0308HP

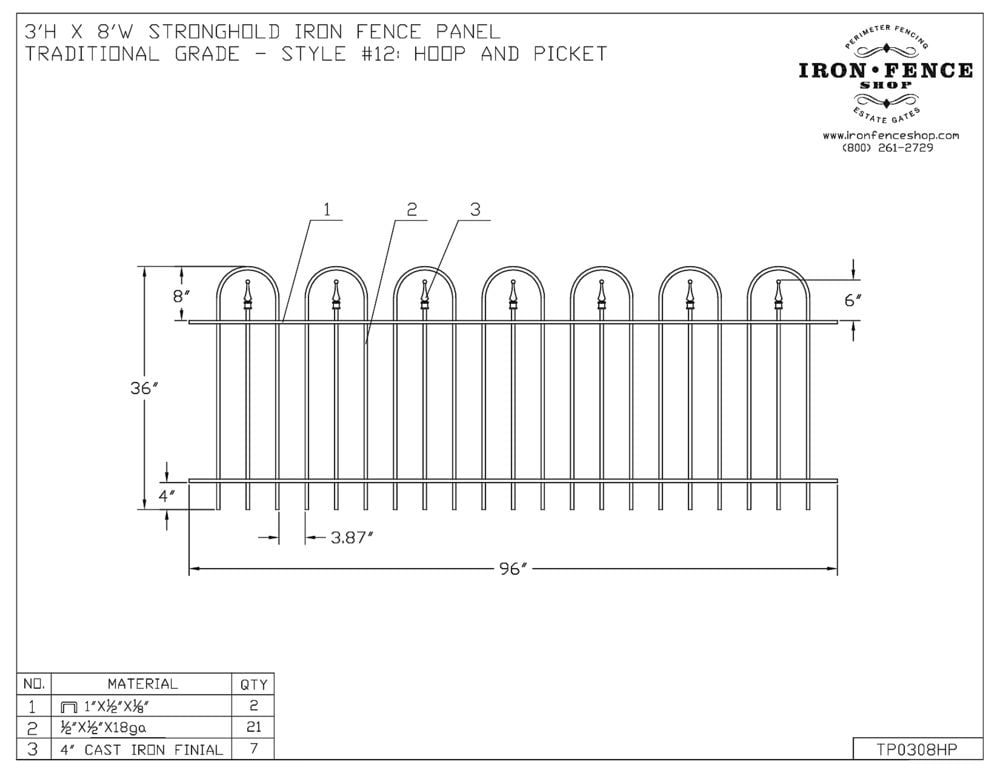

3'H x 8'W - Iron - Traditional Grade Fence Panel - Style #12: Hoop and Picket Download
